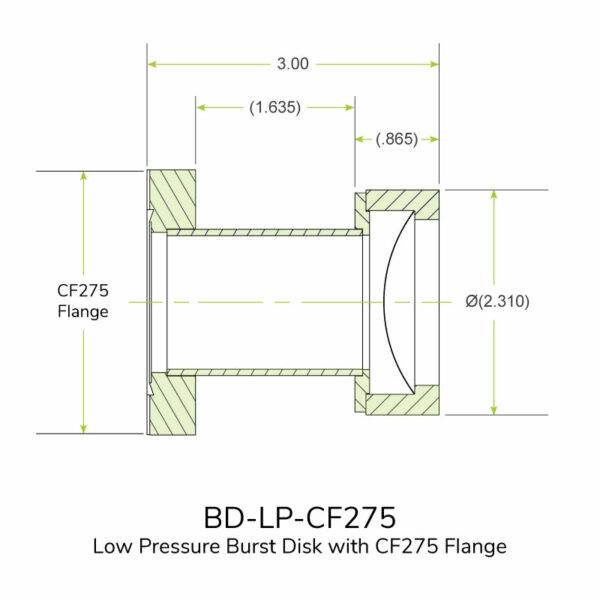

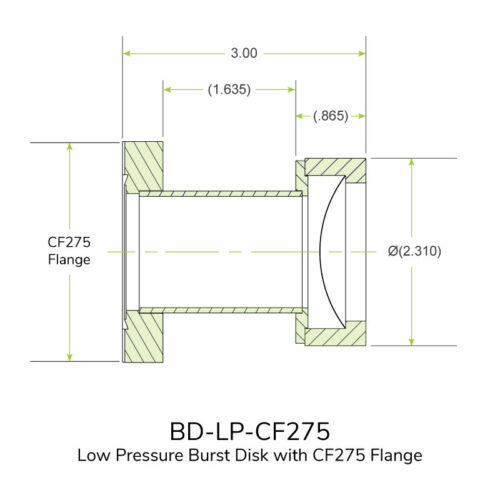

BD-LP-CF275

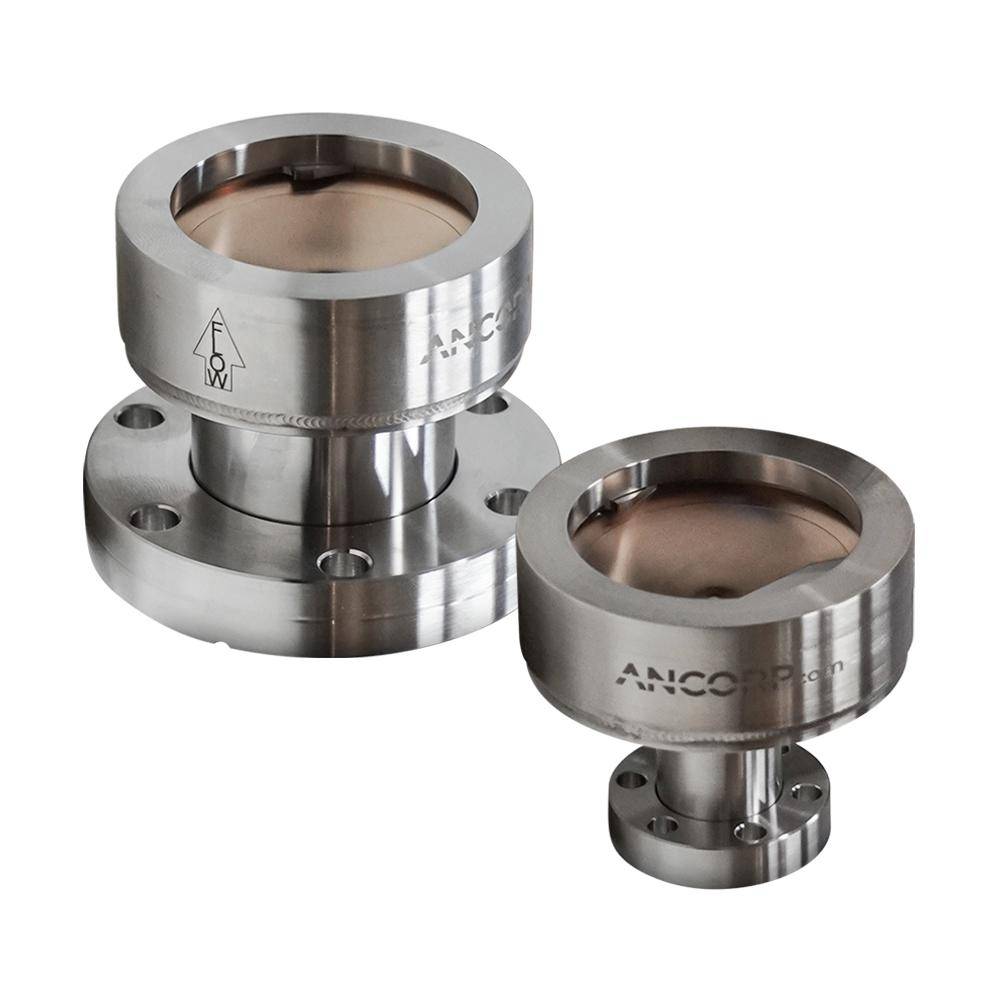

ANCORP’s low pressure burst disk protects against over pressurization of high and ultra-high vacuum (UHV) systems.

• Pressure relief range 5 to 7 PSIG
• UHV Compatible all-metal construction
• Bakeable to 450°C

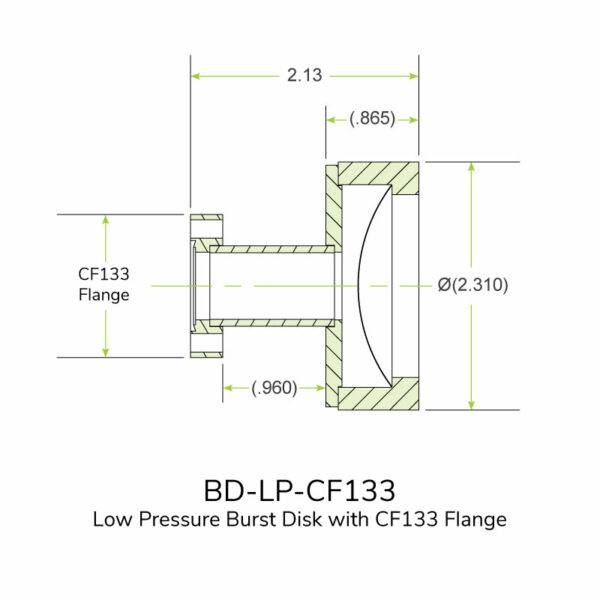

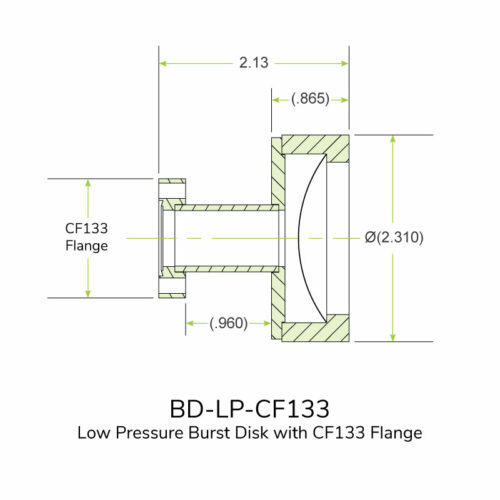

• 1.33″ or 2.75″ ConFlat flange mounting

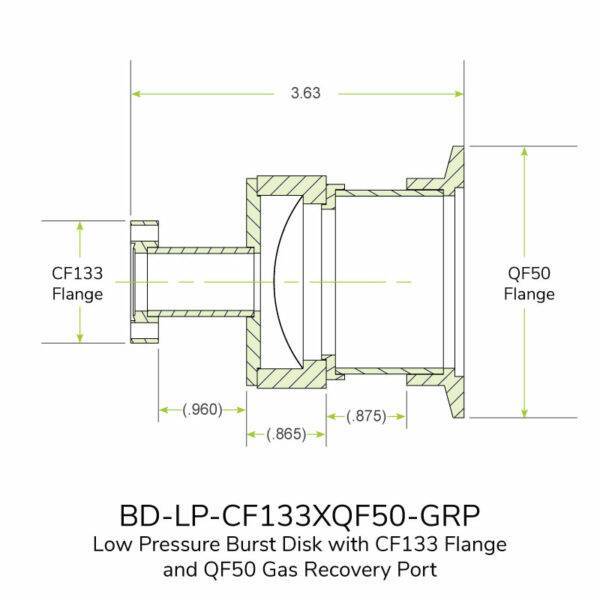

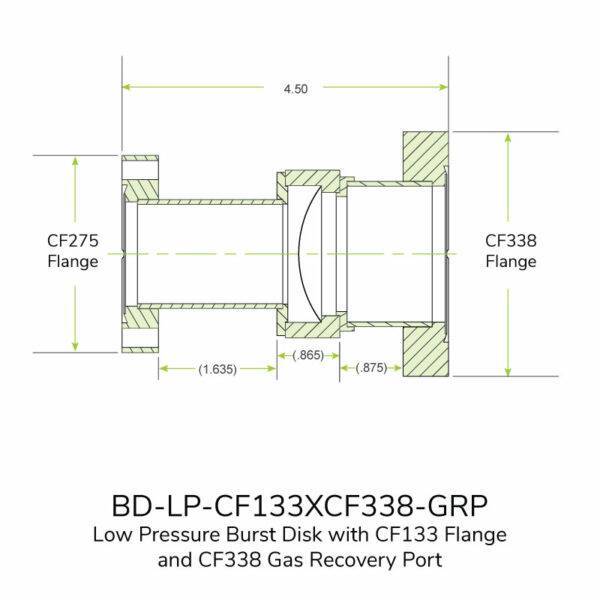

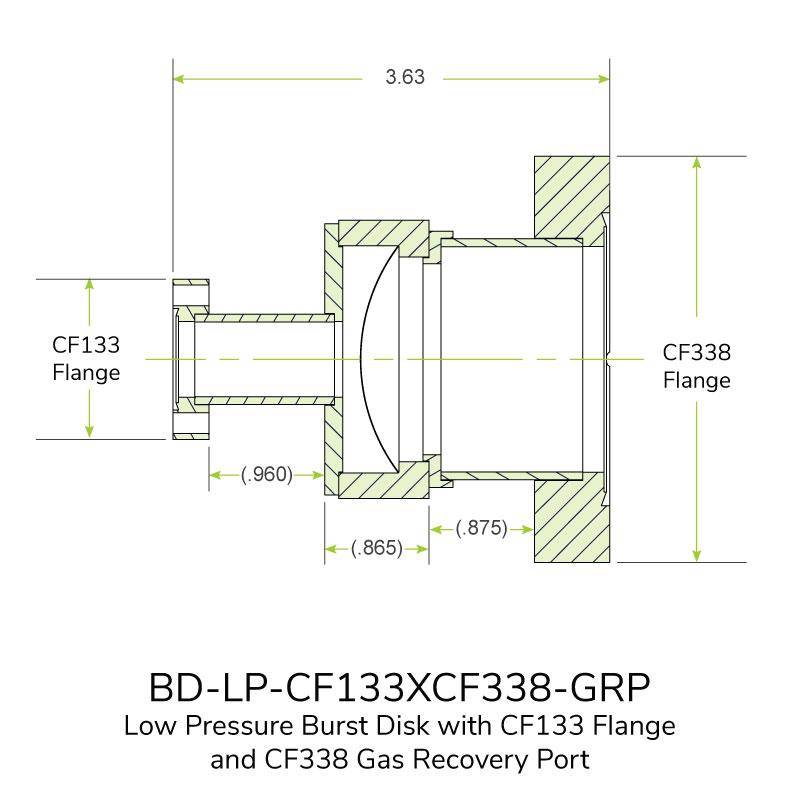

• Gas recovery port options available with QF50 or CF338 flange connection
• ISO 4126-2 compliant
• Leak tight to 2 x 10^-10 std. cc/sec of Helium
• Calculated Flow rates
  • 107 SCFM on 1.33″ flange assembly
  • 435 SCFM on 2.75″ flange assembly
