Attributes

A 12
Flanges QF16

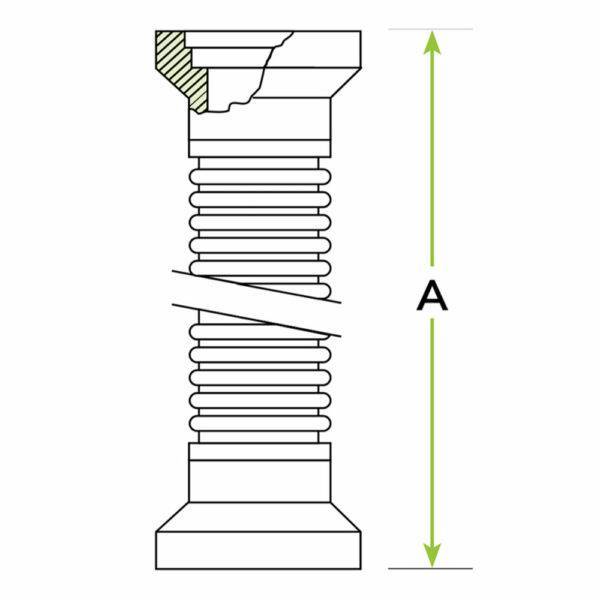

Drawing Figure 1
Wall Thickness 0.006
Nominal Tube I.D. 0.75
3D CADLogin
DrawingLogin
Major Diameter 1.12

QF16-075-B-12.0

Thin Wall Bellow with QF16 Ends, 12.0″ OAL

$180.00

2 in stock (can be backordered)

Part ID: 0800005







Materials:


  • Flanges are manufactured from 304 stainless steel
    •
  • Flexible hose is manufactured from 321 stainless steel
    •


Product Notes:


  • Thin wall design provides maximum flexibility
    •
  • Axial Deflection: +15%/-25% of free length
    •
  • Corrects misaligned connections
    •
  • Provides vibration isolation
    •


Options: Call for Price and Delivery


  • Custom lengths
    •
  • Custom flange combinations
    •
