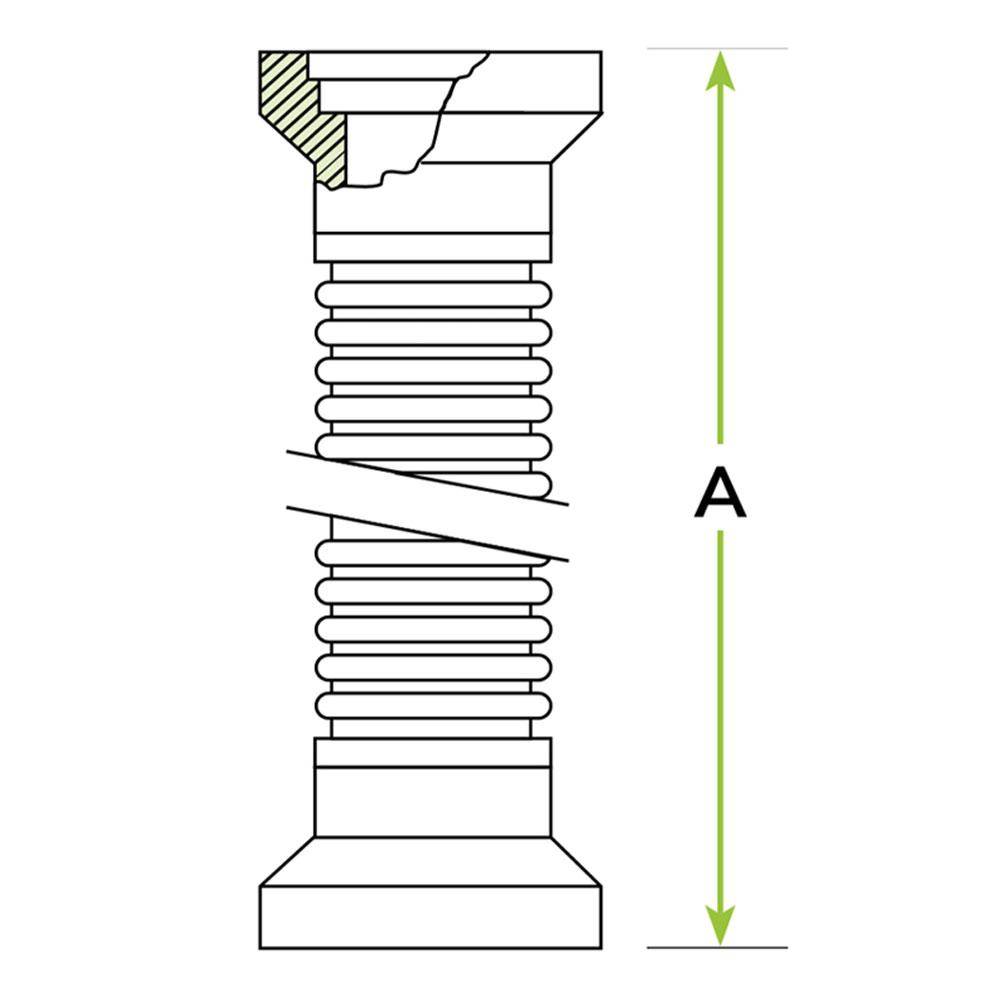

Drawing Figure 1
Wall Thickness 0.006
Nominal Tube I.D. 0.75
3D CADLogin
DrawingLogin
Major Diameter 1.12

All dimensions are in inches unless otherwise specified.

QF16-075-B-36.0

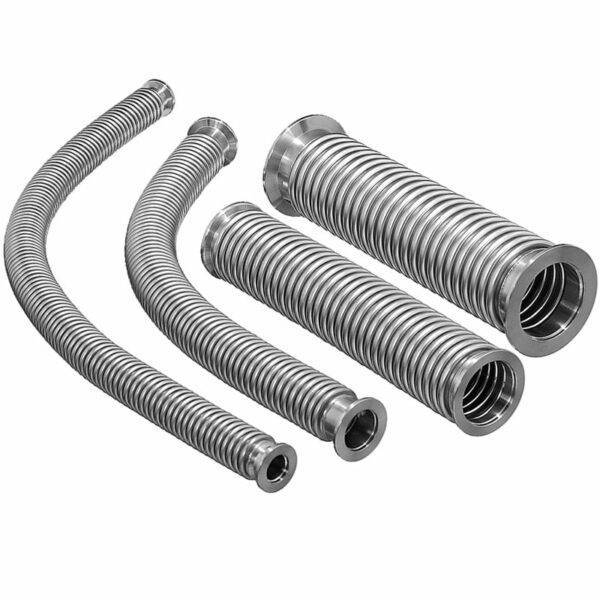

Thin Wall Bellow with QF16 Ends, 36.0″ OAL

Part ID: 0800009


















$245.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Flexible nipples have tube sections constructed from convoluted (formed metal bellows) tubing.




Features






  • Thin wall design provides maximum flexibility
    •

  •  Axial Deflection: +15%/-25% of free length
    •

  • Corrects misaligned connections
    •

  • Provides vibration isolation
    •









Specifications






  •  Materials:
    •





  •  Flanges: 304L Stainless Steel
    •

  •  Flexible Hose: 321 Stainless Steel
    •
