REPRESENTATIVE IMAGE

Attributes

A10
FlangesQF25

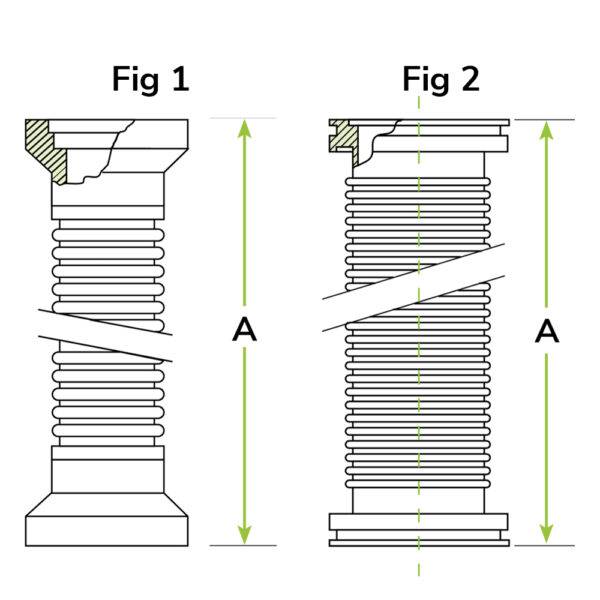

Drawing Figure1
Wall Thickness0.008
Nominal Tube I.D.1
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF25-100-MH-10.0

Medium Wall Flexible Hose with QF25 Ends, 10.0″ OAL

Part ID: 0800045
$110.00
Standard Lead Time:
Contact
Available on backorder


Flexible nipples have tube sections constructed from convoluted (formed metal bellows) tubing.
Features
  • Thin wall design provides maximum flexibility
  •  Axial Deflection: +15%/-25% of free length
  • Corrects misaligned connections
  • Provides vibration isolation
Specifications
  •  Materials:
  •  Flanges: 304L Stainless Steel
  •  Flexible Hose: 321 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A10
FlangesQF25
Drawing Figure1
Wall Thickness0.008
Nominal Tube I.D.1
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
