Type Single Tube
Flange QF25
Figure 1
Connection 0.25 in. Tube Ends
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF25XTE-025-FTST-6.00

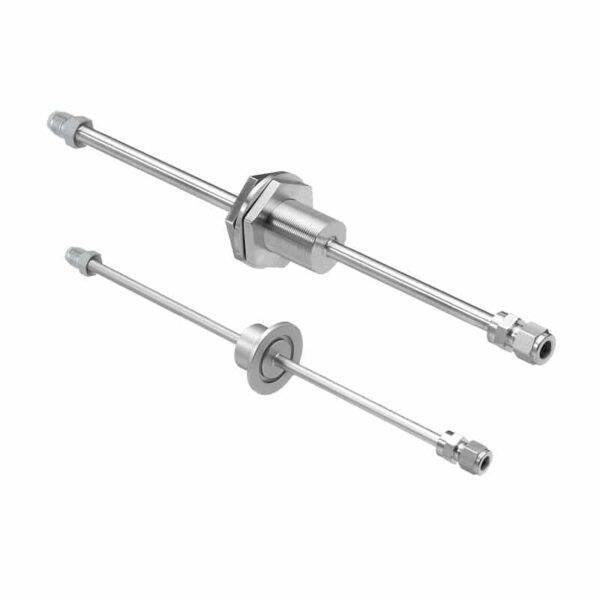

Gas QF25 Feedthrough Tube End

$0.00

Available on backorder

Part ID: 2001005









Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.





Features




  • Flanges and tubing manufactured from 304 stainless steel
    •

  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
    •

  • Max. temperature:



    • CF flanged feedthroughs: 450°C
      •

    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
      •



    •

  • Vacuum rating:



    • CF flanged feedthroughs: UHV 1×10-13 Torr
      •

    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
      •



    •























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4



                    B 2



                    C -



                    D -



                    Type Single Tube



                    Flange QF25



                    Figure 1



                    Connection 0.25 in. Tube Ends



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
