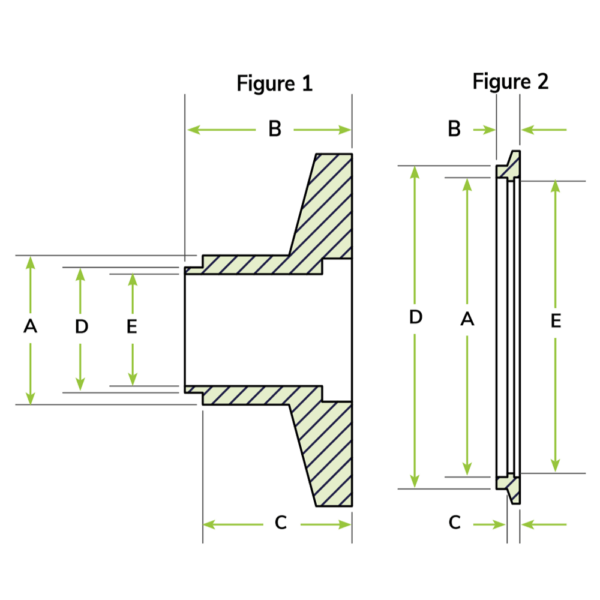

Attributes

A 0.5
B 0.56
C 0.5
D 0.42
E 0.375
Figure 1
Material 304 SST
Tube Size 0.5
3D CADLogin
DrawingLogin

QF16-050-SF

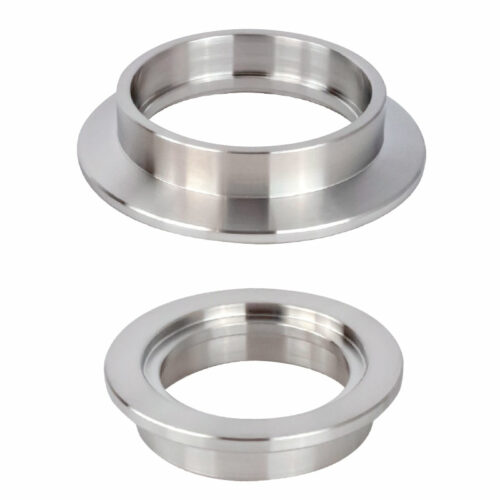

ISO-QF16 Socket Weld Flange, 0.5″ Tube

$16.50

4 in stock (can be backordered)

Part ID: 4000082







Features


  • High Vacuum Rated to 1×10-8 Torr
    •
  • Bakeable to 200°C
    •
  • Compatible with all ISO standard vacuum flanges and fittings
    •
  • Quick sealing and disassembly
    •



Materials


  • Standard:

    • 304 Stainless Steel
      •
    • 316 Stainless Steel
      •

    •



Product Notes


  • Internal weld
    •
  • Self-aligning
    •
  • Designed to fit standard inch tubing O.D.’s
    •
  • QF63-QF200 uses LF Centering Rings
    •
