• 4000122
  • 4000122

REPRESENTATIVE IMAGE

Attributes

A 0.5
B 0.375
C 0.5
Material 304L SS
Tube Size 0.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF16-050-HNM-0.50

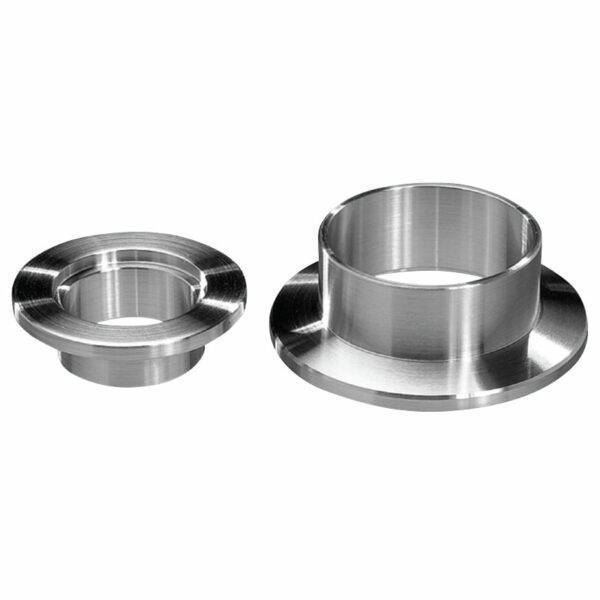

ISO-QF16 Stub Weld Flange, 1/2 in. Tube OD

Part ID: 4000122


















$11.00



































































25 in stock (can be backordered)


















































Stub Weld Flanges are designed for butt welds.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Butt Weld
    •

  • Designed to fit standard inch tubing O.D.’s
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.5



                    B 0.375



                    C 0.5



                    Material 304L SS



                    Tube Size 0.5



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
