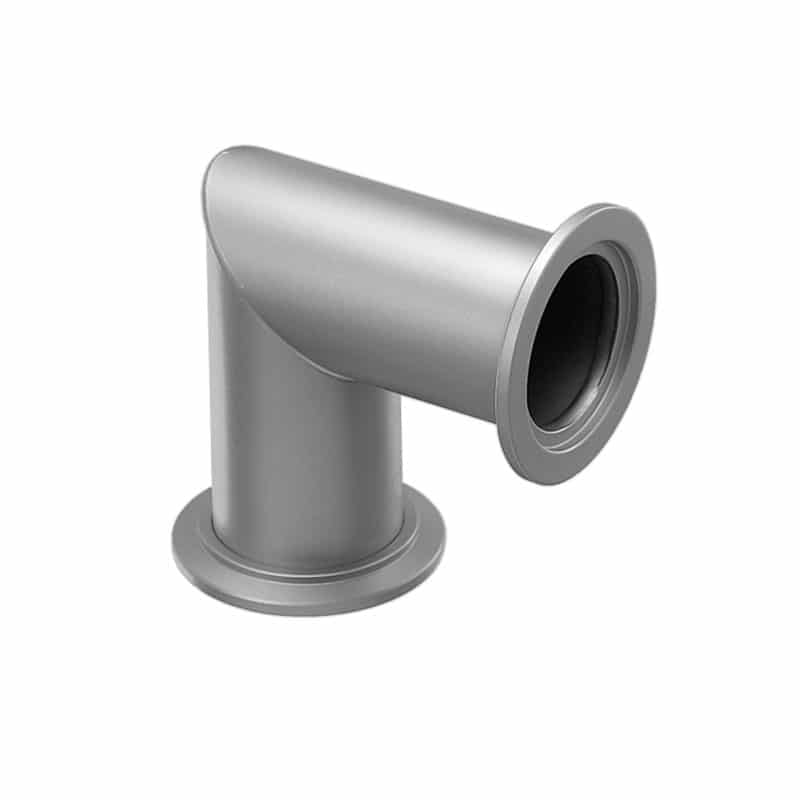

REPRESENTATIVE IMAGE

Attributes

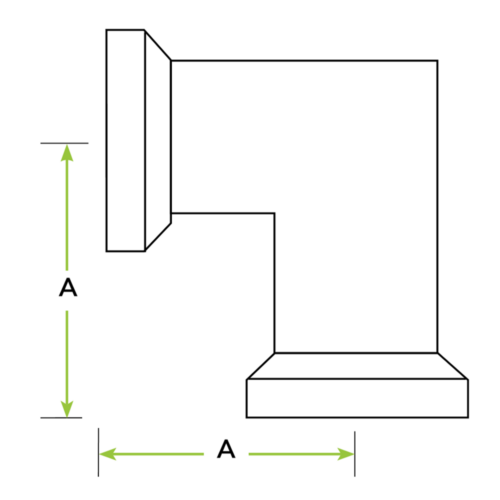

A 2.03
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF25-100-E90M-2.03

ISO-QF25 90° Elbow Mitered

Original price was: $75.00.Current price is: $60.00.

Available on backorder

Part ID: 4000456


Elbows are manufactured with a flange on each end of a curved section of tubing. Elbows accomodate turns or alignment considerations for vacuum system design.

Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel
  • Alternative: 6061 Aluminum (Contact us for price and delivery)

Product Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Quick sealing and disassembly

Options (Contact us for price and delivery)

  • Custom lengths
  • Custom flange combinations
  • ISO-QF large size flanges
