REPRESENTATIVE IMAGE

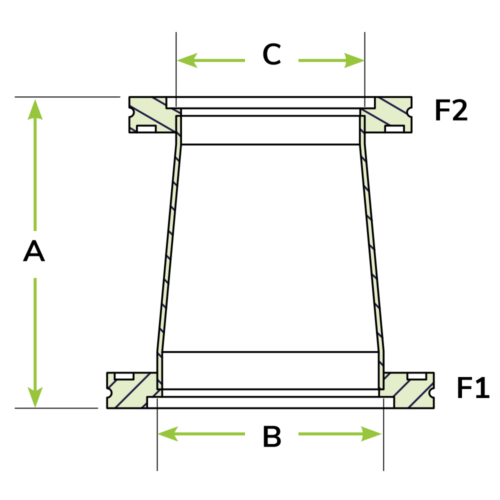

Attributes

A 6.92
B 5.78
C 3.83
Flange 1 LF160
Flange 2 LF100
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF160XLF100-600X400-CR-6.92

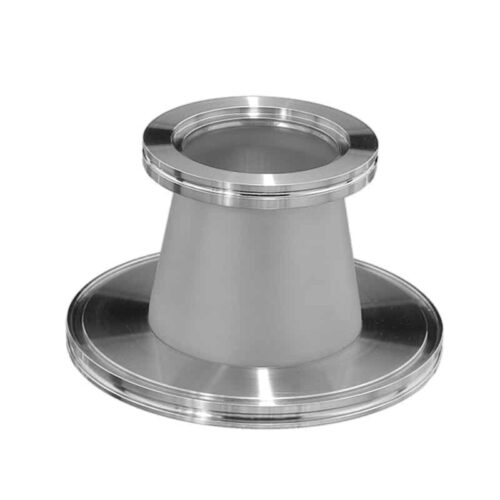

ISO LF160/LF100 Conical Reducer Nipple

Part ID: 4500252


















$644.00



































































1 in stock (can be backordered)


















































Reducer nipples have different size flanges on each end and are available with conical tube sections. Conical tube sections provide higher conductance.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Quick sealing and disassembly
    •

  • Connects different ISO-LF sizes
    •

  • Increased conductance with a conical reducer nipple
    •









Specifications






  • Materials:
    •





  • Standard:



    • Flanges: 304L Stainless Steel
      •

    • Fitting: 304 Stainless Steel
      •



    •
