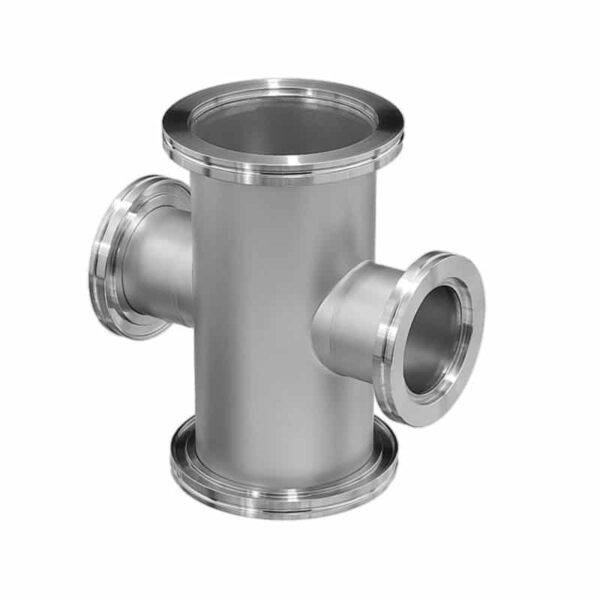

REPRESENTATIVE IMAGE

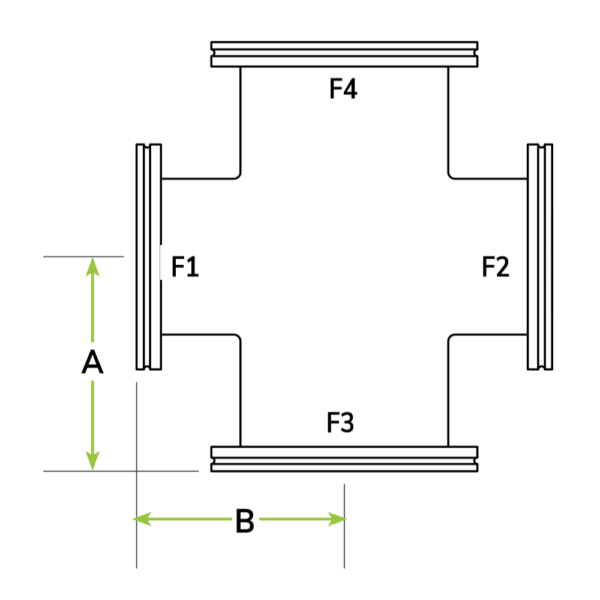

Attributes

A 7.25
B 6.25
Flange 3 LF160
Tube O.D. 6
Flange 1 & 2 LF200
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF200XLF160-800X600-R4X-7.25X6.25

ISO-LF200/ISO-LF160 Reducer Cross

$1,700.00

Available on backorder

Part ID: 4500456


Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Quick sealing and disassembly

Materials

  • Standard
    • 304 Stainless Steel
  • Alternative
    • 6061 Aluminum

Product Notes

  • Pulled ports for optimal vacuum performance
  • Reducing intersection for ISO-LF to ISO-QF flange sizes

Options: Contact us for price and delivery

  • Custom lengths
  • Custom flange combinations
  • ISO-QF large size flanges
  • ISO-LFB flanges
  • Tapped bolt holes
