• 7500104
  • 7500104

REPRESENTATIVE IMAGE

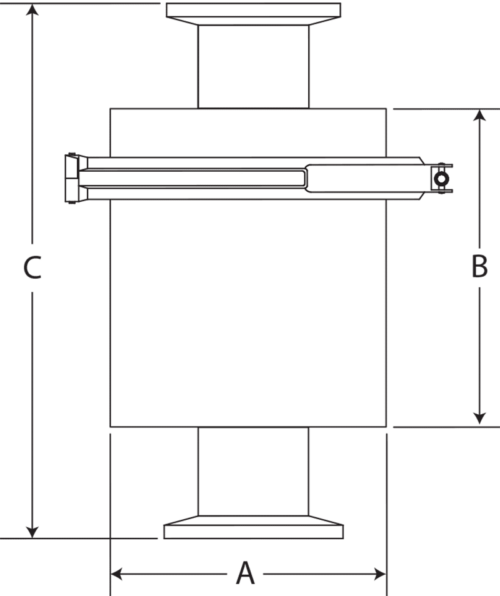

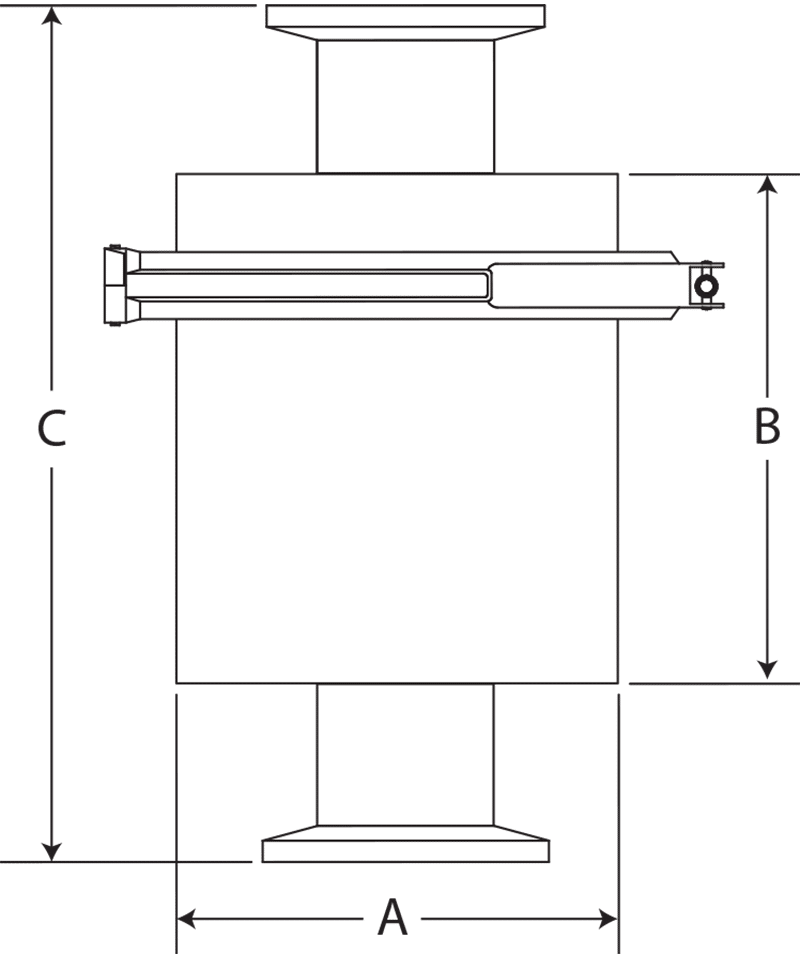

Attributes

A3
B4.8
C6.9
ConnectionQF25 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-300-QF25-O

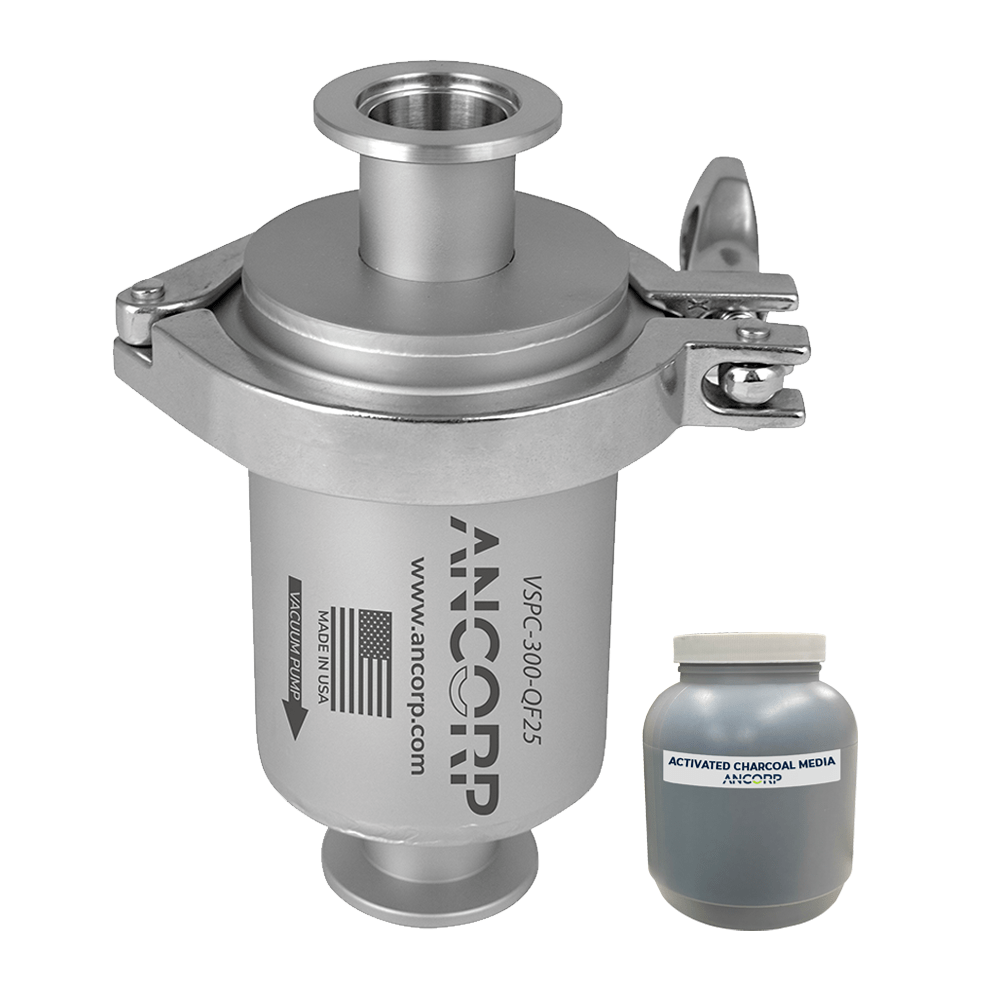

3″ diameter Activated Charcoal Trap with QF25 Flange Connection

Part ID: 7500124
Request a Quote for Price
Available on backorder
Standard Lead Time:
Contact
The VSRC series foreline trap provides a rechargeable shield within your vacuum system. These traps can protect your system from backstreaming pump oil and/or your pump from contaminates created upstream within your system.
Features
  • Fully charged
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
  • 2-stage trapping system
    • Stage 1: stainless steel baffle – extends the life of the media
    • Stage 2: coalescing media
Specifications
  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N
  • Trapping media: ACTIVATED CHARCOAL. Provides protection from light water vapor loads, heavy metals and organics.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A3
B4.8
C6.9
ConnectionQF25 FLANGE
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
