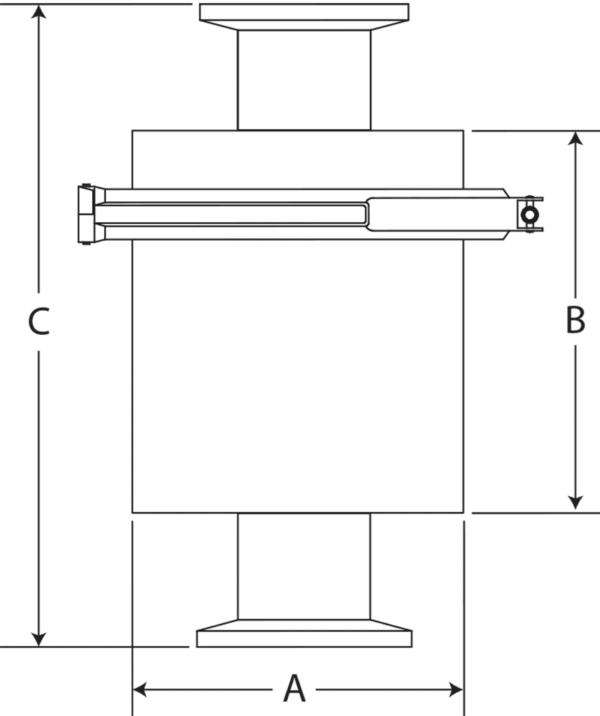

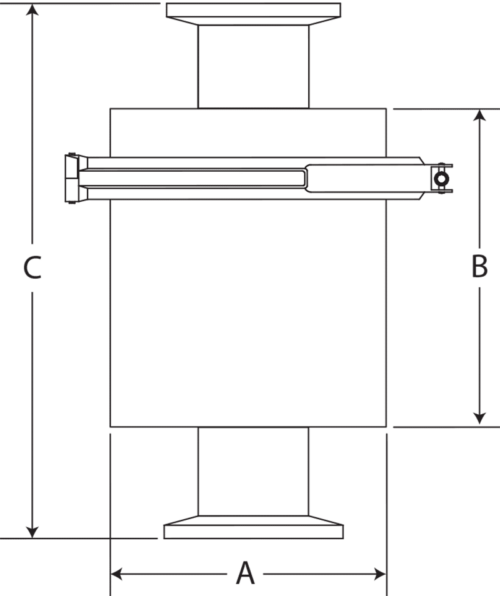

Attributes

A 3
B 4.8
C 6.9
Connection QF40 FLANGE
3D CADLogin
DrawingLogin

VSRC-300-QF40-C

3″ diameter Rechargeable Trap with Copper Media and QF40 Flange Connection

$473.00

Available on backorder

Part ID: 7500125







Features


  • Trapping media: COPPER. Provides protection from pump fluid backstreaming.
    •
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •
  • 2-stage trapping system

    • Stage 1: stainless steel baffle – extends the life of the media
      •
    • Stage 2: coalescing media
      •

    •
  • Materials

    • Body, flanges and baffle: 304 stainless steel electropolished
      •
    • Seal: Buna-N
      •

    •
  • Fully charged
    •
