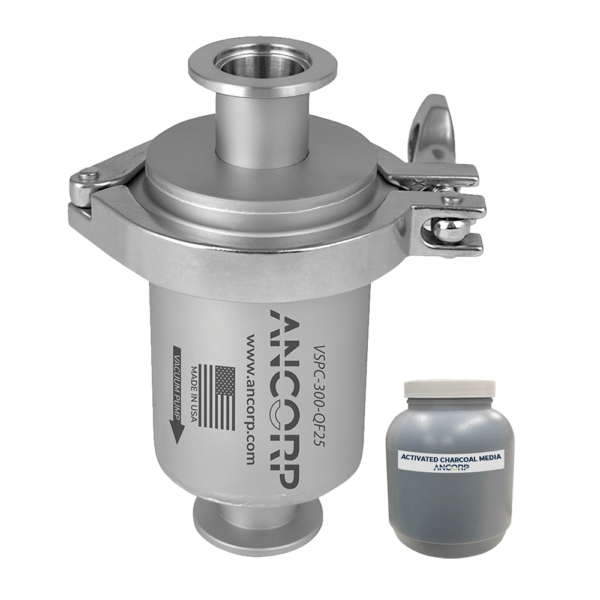

REPRESENTATIVE IMAGE

Attributes

A 4
B 5
C 7
Connection QF25 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-400-QF25-O

4″ diameter Activated Charcoal Trap with QF25 Flange Connection

Part ID: 7500138


$534.00

Standard Lead Time:

Contact

Available on backorder

The VSRC series foreline trap provides a rechargeable shield within your vacuum system. These traps can protect your system from backstreaming pump oil and/or your pump from contaminates created upstream within your system.

Features

  • Fully charged
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
  • 2-stage trapping system
    • Stage 1: stainless steel baffle – extends the life of the media
    • Stage 2: coalescing media

Specifications

  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N
  • Trapping media: ACTIVATED CHARCOAL. Provides protection from light water vapor loads, heavy metals and organics.
