• 7500101
  • 7500101

REPRESENTATIVE IMAGE

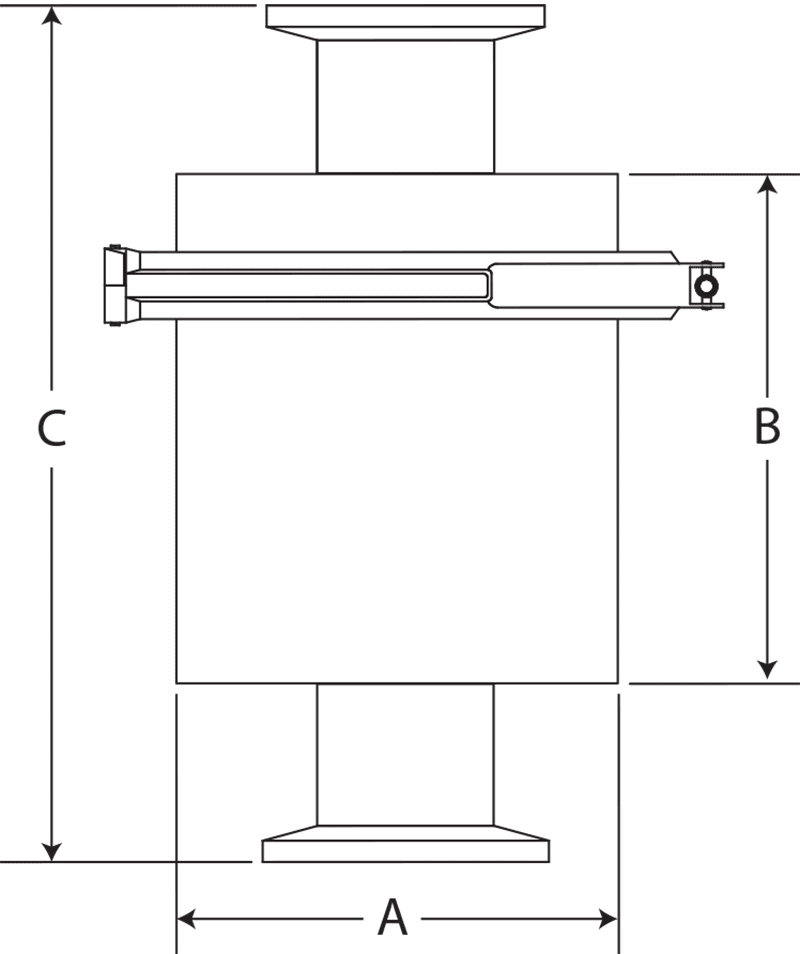

Attributes

A 8
B 7.3
C 10.4
Connection LF63 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-800-LF63-C

8″ diameter Rechargeable Trap with Copper Media and LF63 Flange Connection

Part ID: 7500171

































Request a Quote for Price









Available on backorder





















			Standard Lead Time:

Contact









































































The VSRC series foreline trap provides a rechargeable shield within your vacuum system. These traps can protect your system from backstreaming pump oil and/or your pump from contaminates created upstream within your system.




Features






  • Fully charged
    •

  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •

  • 2-stage trapping system
    •



    • Stage 1: stainless steel baffle – extends the life of the media
      •

    • Stage 2: coalescing media
      •









Specifications






  • Materials:
    •





  • Body, flanges and baffle: 304L stainless steel electropolished
    •

  • Seal: Buna-N
    •

  • Trapping media: COPPER. Provides protection from pump fluid back streaming.
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 8



                    B 7.3



                    C 10.4



                    Connection LF63 FLANGE



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
