• 7500101
  • 7500101

REPRESENTATIVE IMAGE

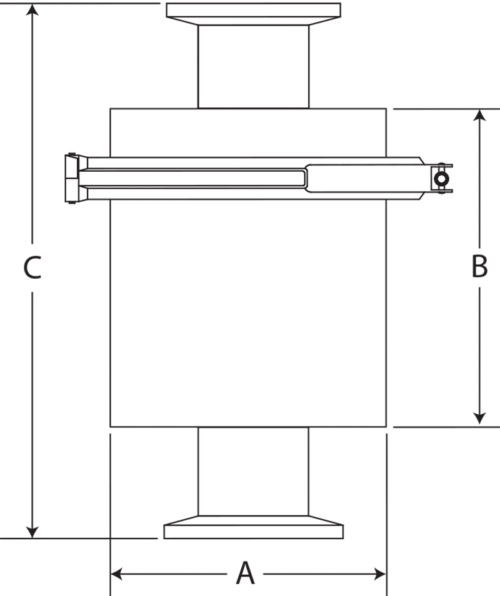

Attributes

A 8
B 7.3
C 10.4
Connection LF80 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-800-LF80-C

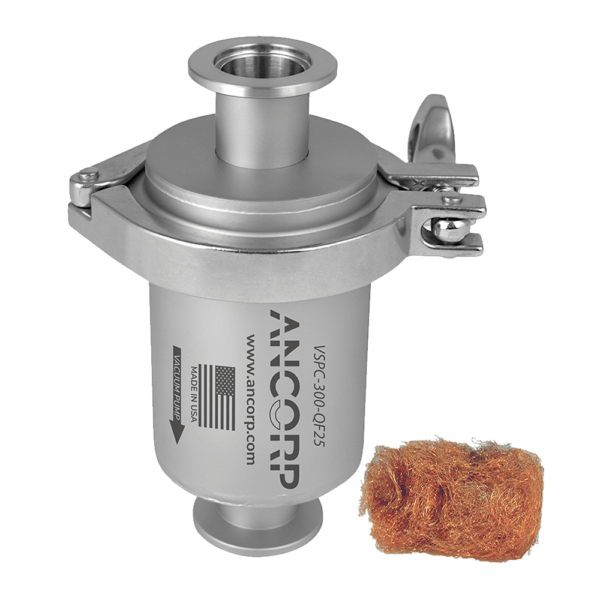

8″ diameter Rechargeable Trap with Copper Media and LF80 Flange Connection

$1,216.00

Available on backorder

Part ID: 7500175









Features




  • Trapping media: COPPER. Provides protection from pump fluid backstreaming.
    •

  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •

  • 2-stage trapping system



    • Stage 1: stainless steel baffle – extends the life of the media
      •

    • Stage 2: coalescing media
      •



    •

  • Materials



    • Body, flanges and baffle: 304 stainless steel electropolished
      •

    • Seal: Buna-N
      •



    •

  • Fully charged
    •























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

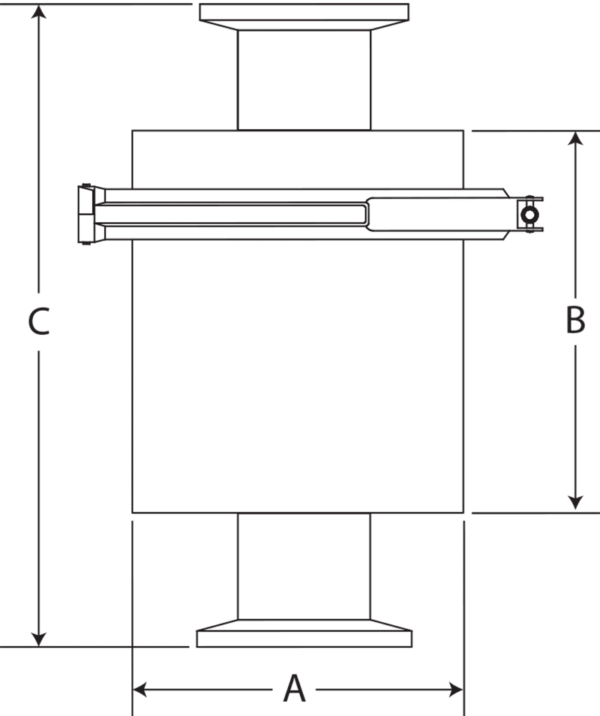

Attributes




















                    A 8



                    B 7.3



                    C 10.4



                    Connection LF80 FLANGE



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
