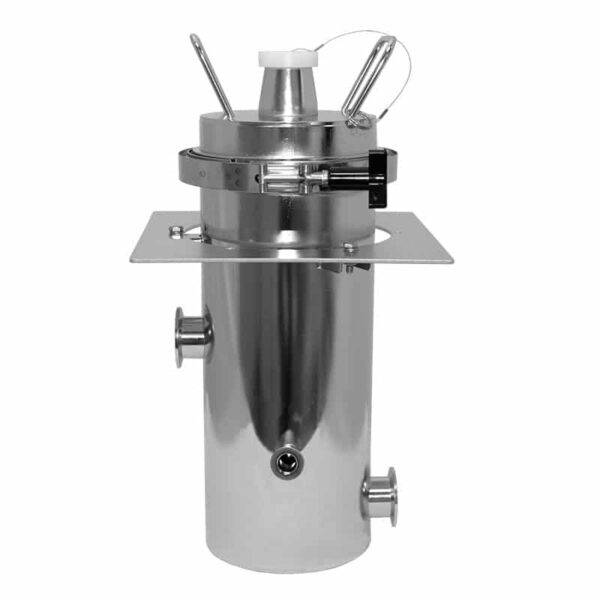

REPRESENTATIVE IMAGE

Attributes

A 8
B 16.5
C 2.5
D 5.25
E 8.5
F 5.25
G 5.5
H 4.98
Vol (L) 5
I Height 12.5
Connection QF40 FLANGE
J Diameter 12
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSCI-5000-QF40

QF40 Large Body LN2 Trap, 5 L

Part ID: 7500432

































Request a Quote for Price









Available on backorder





















			Standard Lead Time:

Contact









































































The VSCI traps have an in-line port design for installation and a simple 2-piece clamped body design to ease trap cleaning.




Features






  • Port terminations: ISO-QF(KF)
    •

  • Trapping mechanics: condensation
    •

  • Mounting plate and exhaust vent included
    •









Specifications






  • Materials:
    •





  • Body, flanges and baffle: 304L stainless steel electropolished
    •

  • Seal: Buna-N
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 8



                    B 16.5



                    C 2.5



                    D 5.25



                    E 8.5



                    F 5.25



                    G 5.5



                    H 4.98



                    Vol (L) 5



                    I Height 12.5



                    Connection QF40 FLANGE



                    J Diameter 12



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
