REPRESENTATIVE IMAGE

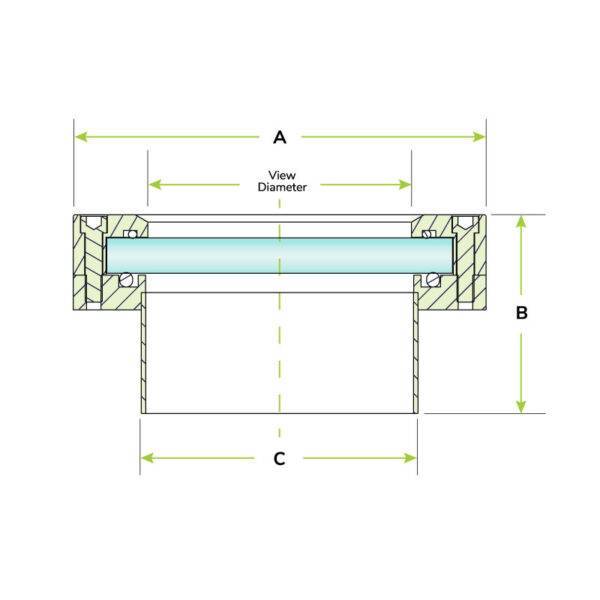

Attributes

A5.97
B2.88
C4
Description4 in. Weldable Quartz Viewport
View Diameter3.88
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

400-WVP-3.812-Q

4″ Weldable Quartz Viewport

Part ID: 9118010
$625.00
Standard Lead Time:
Contact
Available on backorder

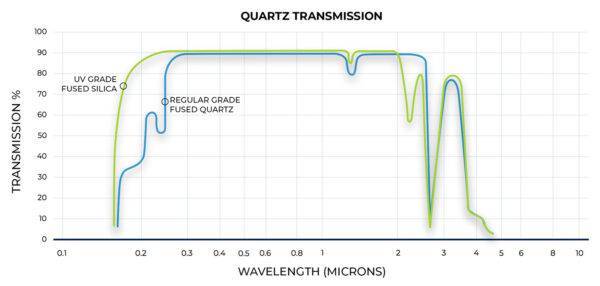

Fused quartz windows extend that transmission range into the ultraviolet region. The easy to replace port glass ensures continued visibility within your chamber. The viewing window is held between a pair of sealing fluoroelastomer rings and compressed together by a retaining flange to form a high vacuum (1×10-8 Torr) seal.
Features
  • High Vacuum rating of 1×10-8 torr
  •  Thermal range: -100°C to 150°C
  • Avoid thermal changes in excess of 10°C/minute
  • Do not expose to pressure above 1 atmosphere
Specifications
  •  Materials:
  •  Body: 304L Stainless Steel
  •  Seal: FKM
  •  Viewing Window: regular grade fused quartz
  •  Retaining Flange: Aluminum

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A5.97
B2.88
C4
Description4 in. Weldable Quartz Viewport
View Diameter3.88
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
