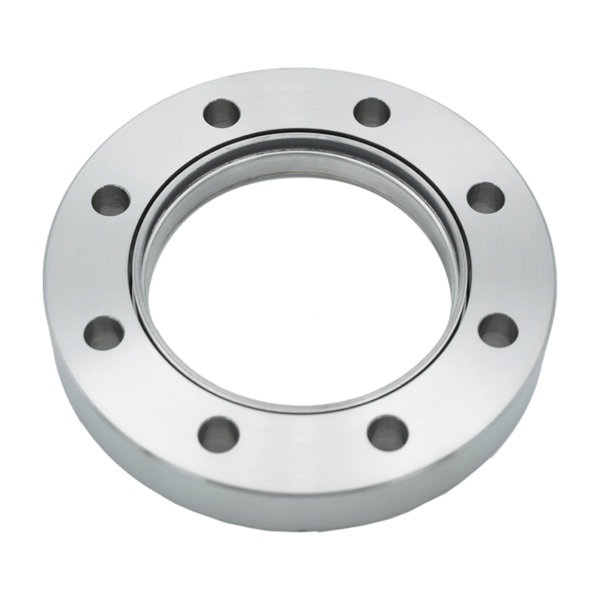

REPRESENTATIVE IMAGE

Attributes

Description CF338 UV Grade Fused Silica Viewport
Flange Size 3.38

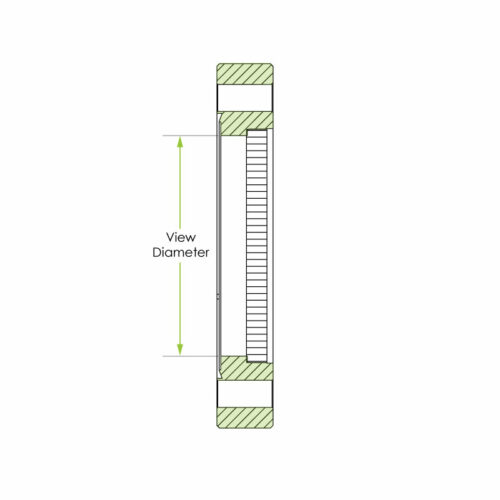

View Diameter 1.4
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF338-ZLVP-Q-UV-1.40

UV Fused Silica Viewport with 3.38 in. (DN 50) ConFlat Flange

Part ID: 9118033


















$265.00



















































			Standard Lead Time:

Contact
















































Available on backorder



















































Features






  • UV grade fused silica viewport
    •

  • Zero-length profile
    •

  • ConFlat flange
    •

  • UV grade fused silica windows
    •

  • Bakeable to 200°C
    •

  • Non-magnetic materials
    •

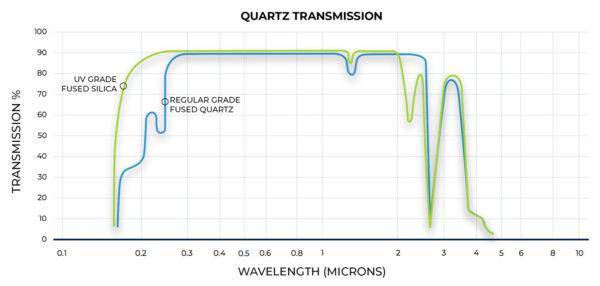

  • Excellent transmission for UV to 250nm
    •

  • UHV compatible
    •









 Specifications






  • Flange material
    •



    • 316L stainless steel (1.33”)
      •

    • 304L stainless steel (2.75” to 8.00”)
      •



  • Window material: Corning HPFS 7980 Fused Silica or equivalent
    •

  • TWD < 10λ @ 632nm (peak to valley)
    •

  • Parallelism < 30 arc minutes
    •

  • Surface finish: 40/20 scratch-dig
    •

  • Thermal range: -100°C to 200°C
    •

  • Bake-out ramp rate: 20°C per minute
    •

  • Homogeneity grade: F
    •

  • Inclusion class: 2
    •

  • Leak rate < 1 X 10-9 atm-cc/sec He
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description CF338 UV Grade Fused Silica Viewport



                    Flange Size 3.38



                    View Diameter 1.4



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
