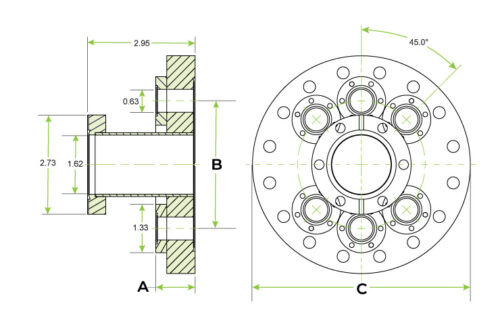

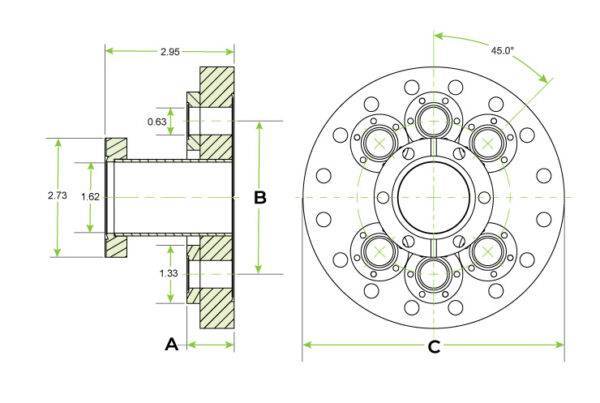

Attributes

A 1.18
B 4.25
C 8
3D CADLogin
DrawingLogin

CF800XCF275X6CF133T-MCF

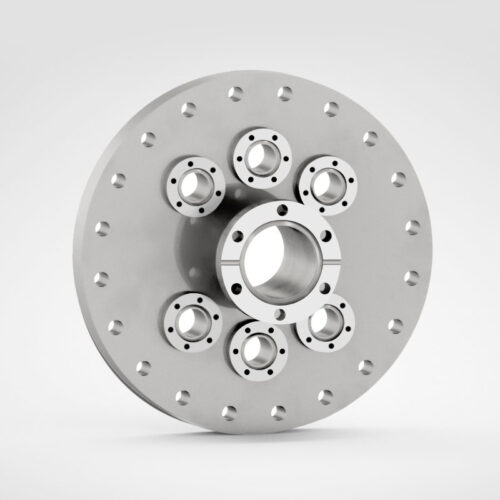

8.00 in. Straight in, Multiport ConFlat Flange, (1) 2.75 in. to 1.75 in. Center ConFlat Flange, (6) 1.33 in. to .75 in. Flush Mounted ConFlat Flanges

$715.00

Available on backorder

Part ID: 5005001
















CF600 (6”) or CF800 (8”) O.D. multiport flange with (1) CF275 (2.75”) fixed center flange on tube extension and (6) CF133T (1.33”, tapped bolt holes) fixed mini flanges, flush-mounted.



Product Features:


  • Standard Material: 304L SS
    •
  • Temperature Range: -200°C to 450°C
    •
  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
    •
  • Typically made-to-order
    •



Options: Contact us for price and delivery


  • Number of ports, angles of ports, flange sizes, flange types, tube lengths, materials, and more.
    •



If you are interested in purchasing a customized multiport flange, please visit our Request a Custom Product page to submit your specifications.
