Baseplate Adapters

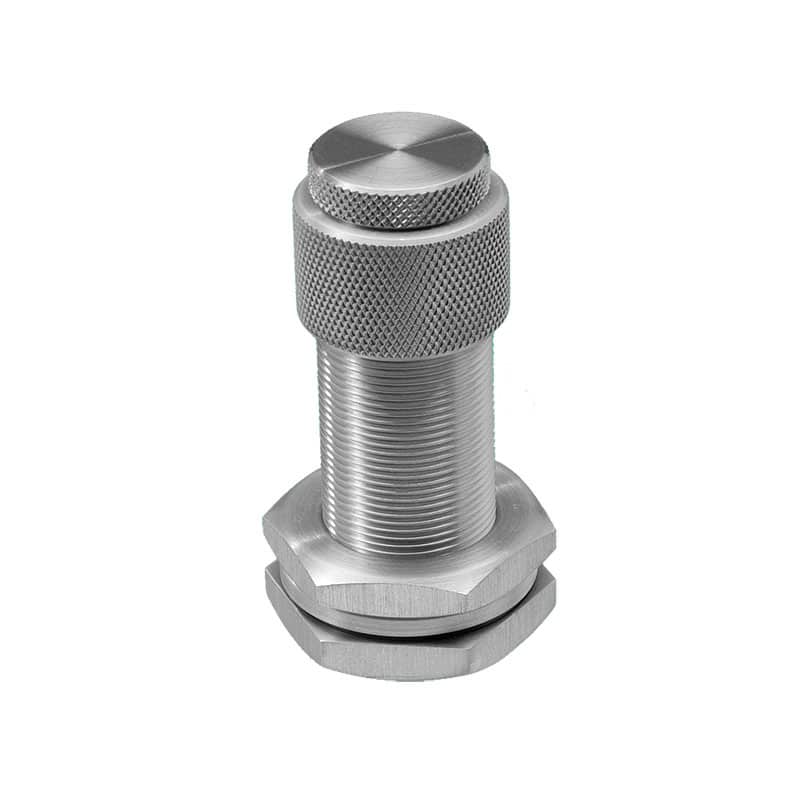

Baseplate fittings are a convenient means to attach a vacuum measurement device, add a gas backfill line, mount metal or glass tubing, connect your bulkhead port to an KF (QF) or CF flange, or close an unused bulkhead port with a blank plug without welding or brazing to your system. For pricing and lead time on additional flange connections or configurations, please submit a request using our contact form.

Baseplate fittings are designed to fit through 1 in. diameter ports on baseplates up to 1 in. thick.

Baseplate Fitting to CF Flange

Baseplate-to-ConFlat Flange adapters allow for the attachment of ConFlat flanges and fittings to a chamber system that is otherwise unequipped for CF components. The standard range of these adapters transitions into 2.12″ O.D. or 2.75″ O.D. ConFlat flanges.

Baseplate Fitting to ISO-QF Flange

Baseplate-to-KF(QF) Flange adapters allow for the attachment of ISO Quick Flange components to a chamber system that is otherwise unequipped. The standard range of these adapters transitions to KF25 (QF25) and KF40 (QF40) KF (QF) flanges.
