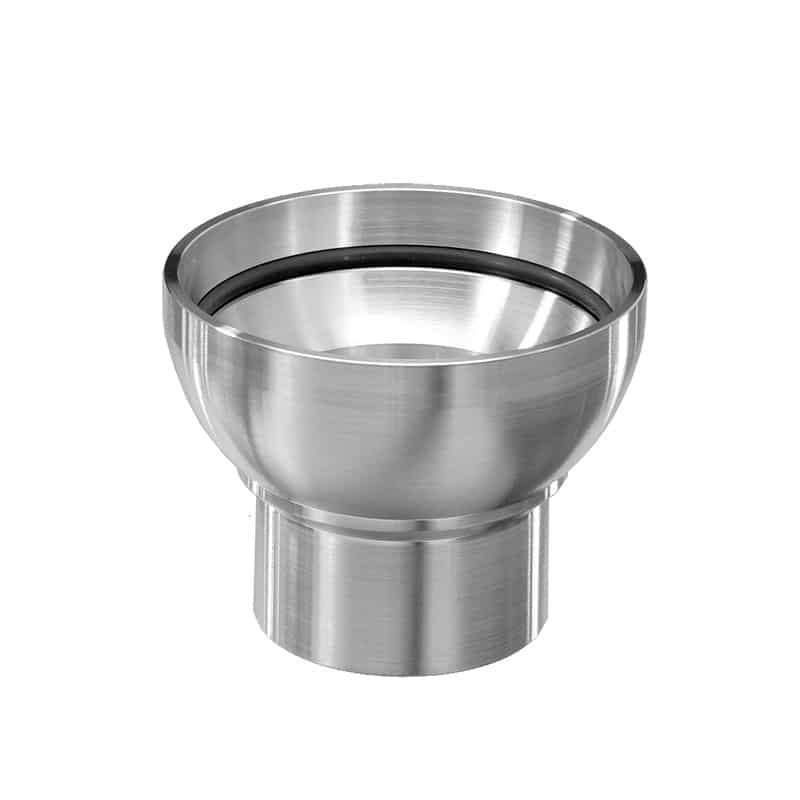

Ball Socket - Grooved
Our ball sockets offer a solution for sealing, adapting, and connecting various components in your vacuum system. These precision-engineered components enhance the connectivity of your setup.
Features
- Butt weld
- Designed to fit standard inch tubing O.D.’s
Specifications
- Manufactured from 304 stainless steel
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Length B | O-Ring Size | Tube O.D. A | Socket I.D. C | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 0700140 | Reference Number | 50/30-150-WBSG-2.00 | Length B | 2 | O-Ring Size | 2-224 | Tube O.D. A | 1.5 | Socket I.D. C | 1.995 | 3D CAD | Login | Drawing | Login | Unit Price | $135.00 | 25 | |
| Part ID | 0700145 | Reference Number | 75/50-200-WBSG-2.52 | Length B | 2.52 | O-Ring Size | 2-232 | Tube O.D. A | 2 | Socket I.D. C | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $175.00 | 16 | |
| Part ID | 0700150 | Reference Number | 102/75-300-WBSG-2.00 | Length B | 2 | O-Ring Size | 2-240 | Tube O.D. A | 3 | Socket I.D. C | 3.98 | 3D CAD | Login | Drawing | Login | Unit Price | $205.00 | Contact |
