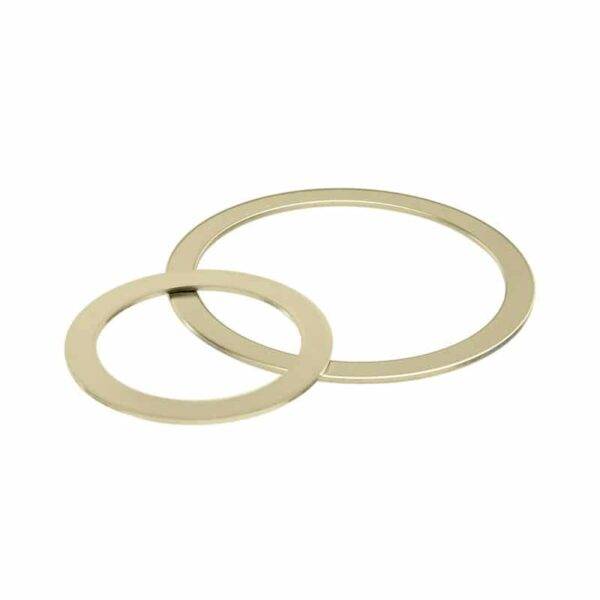

REPRESENTATIVE IMAGE

Attributes

Description Copper Gaskets (10)
Inner Diameter 0.64
Outer Diameter 0.835
Use with Flange CF133
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF133-GA-CO

Copper Gasket for 1.33 in. (DN 16) ConFlat Flange – 10 Pack

$22.00

848 in stock (can be backordered)

Part ID: 0604020









The basic seal for the CF flange system is an oxygen free electronic grade (OFE) and high thermal conductivity (OFHC) copper gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving ultra high vacuum pressures. These gaskets are precisely punched, de-burred, chemically treated and packaged to eliminate and prevent surface imperfections.




Features






  • Single-use seal
    •









Specifications






  • Materials: OFE copper
    •

  • Pressure range: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description Copper Gaskets (10)



                    Inner Diameter 0.64



                    Outer Diameter 0.835



                    Use with Flange CF133



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
