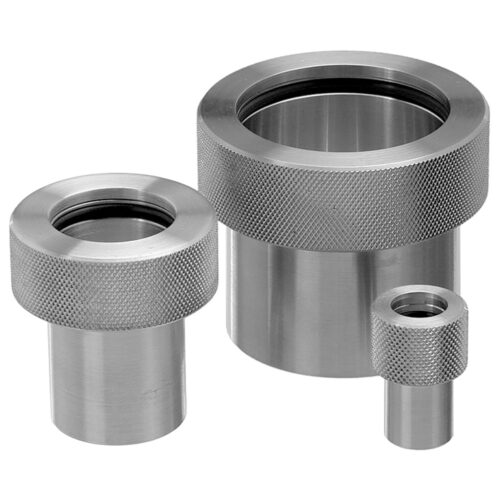

REPRESENTATIVE IMAGE

Attributes

A1.63
B2
C2.13
D0.88
Accepts Tube O.D.1.375
DrawingLogin
Wall Thickness0.118
Accepts Tube O.D.1.375
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

138-QDTN-2.13

1 3/8 in. Thin Wall Disconnect Coupling

Part ID: 1000124
$138.00
Need more than what you see in stock? Let us know and we can likely assemble in less than a day.
Standard Lead Time:
Contact
Available on backorder


Quick disconnects are a fast and easy way to make and break a vacuum seal onto metal or glass tubing.
Features
  • Vacuum rating: HV design 1×10-8 Torr
  • Interchangeable with other quick disconnect style fittings
  • Quick disconnects come standard with Buna-N seals (FKM is available)
  • Quickly make and break vacuum seals
  • Designed to accept standard inch tubing O.D.’s
  •  Infinitely rotatable, sexless connection to tubing or gauges
  • Reusable seals
Specifications
  • Leak rating: <1x10M-9 std. cc/s helium
  • Body, plug, and retaining ring manufactured from 304L stainless steel
  • Nut manufactured from 303 stainless steel
  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
  • Limited quantities of brass couplings available upon request

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A1.63
B2
C2.13
D0.88
Accepts Tube O.D.1.375
DrawingLogin
Wall Thickness0.118
Accepts Tube O.D.1.375
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
