Attributes

A 5
B 3
C -
D -
Type Single Tube
Flange QF50
Figure 1
Connection 0.25 in Swagelok
3D CADLogin
DrawingLogin

QF50XSWG25-FTST-8.00

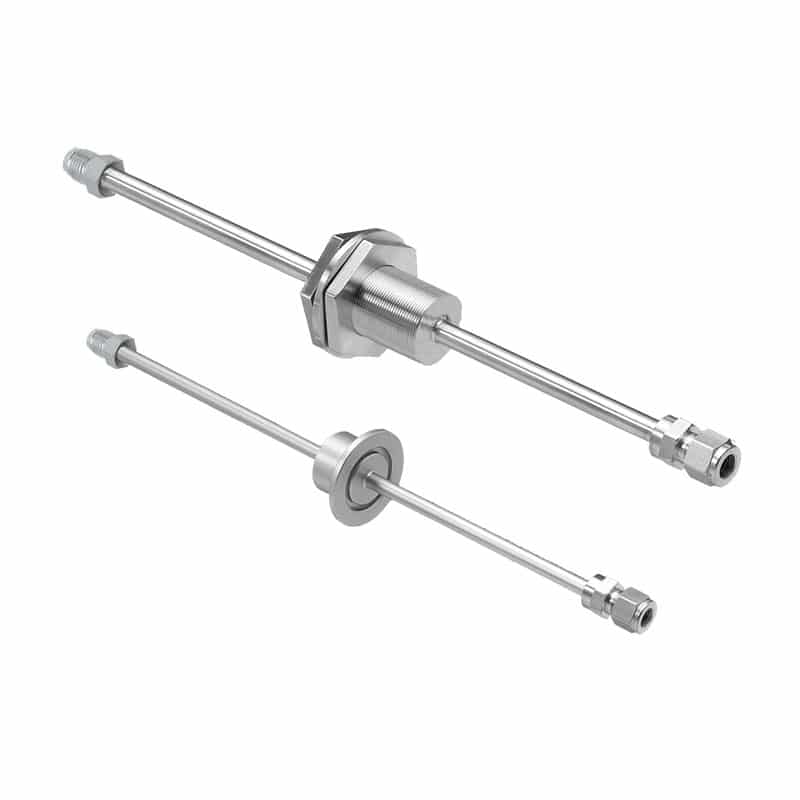

Gas Single QF50 Feedthrough Swagelok

$182.00

Part ID: 2001019


Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.



Features

  • Flanges and tubing manufactured from 304 stainless steel
  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
  • Max. temperature:
    • CF flanged feedthroughs: 450°C
    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
  • Vacuum rating:
    • CF flanged feedthroughs: UHV 1×10-13 Torr
    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
