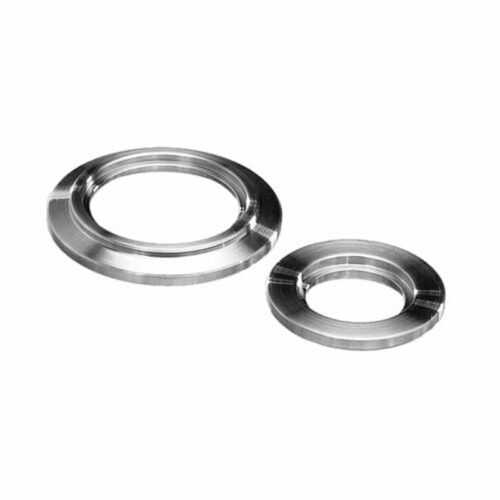

REPRESENTATIVE IMAGE

Attributes

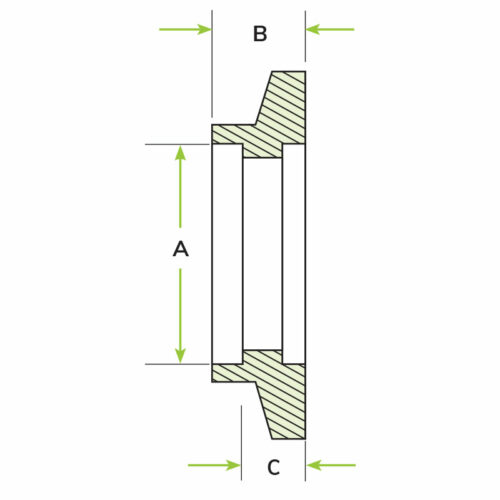

A 2.01
B 0.25
C 0.17
Bore Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-200-RF

ISO-QF50 Weld Ring Flange

Part ID: 4000080


















$21.00



































































1032 in stock (can be backordered)


















































Weld ring flanges were created to offer a thin profile while still offering a weld preparation groove. This groove makes the flange self-aligning, offers greater weld joint strength, and provides aesthetic coverage of the weld joint and heat discoloration that can appear after welding.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Internal Weld
    •

  • Self-aligning
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Thinner design than standard socket weld flanges
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.01



                    B 0.25



                    C 0.17



                    Bore Size 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
