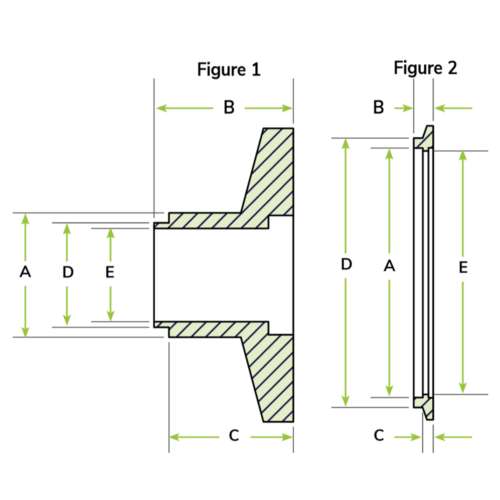

Figure 2
Material 304L SS
Tube Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-200-SF

ISO-QF50 Socket Weld Flange, 2 in. Tube

Part ID: 4000086


















$25.00





































			Standard Lead Time:

2 Weeks
















































Available on backorder


















































Socket Weld Flanges are designed with a tube counterbore for internal welds.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Internal weld
    •

  • Self-aligning
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • QF63-QF200 uses LF Centering Rings
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •
