REPRESENTATIVE IMAGE

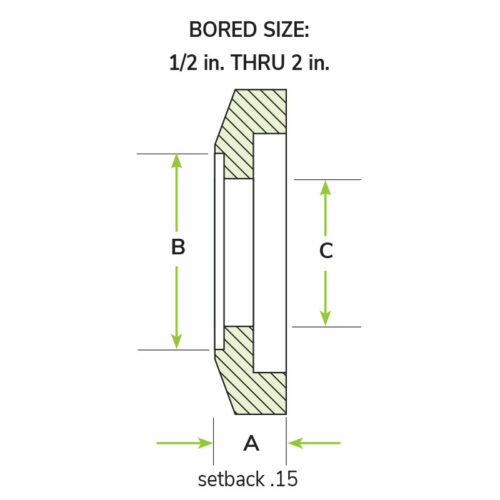

Attributes

A 0.2
B 1.01
C 0.94
Material 304L SS
Bore Size 1
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF25-100-BW

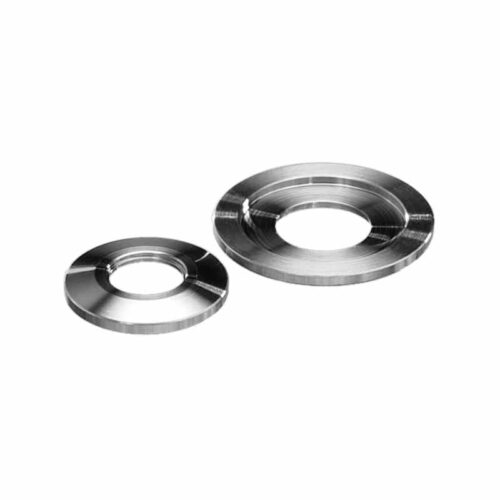

ISO-QF25 Bored Weld Flange 1 in. Bore, 304L SS

Part ID: 4000107


















$12.50



































































19 in stock (can be backordered)


















































These flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Designed to fit standard inch tubing O.D.’s
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.2



                    B 1.01



                    C 0.94



                    Material 304L SS



                    Bore Size 1



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
