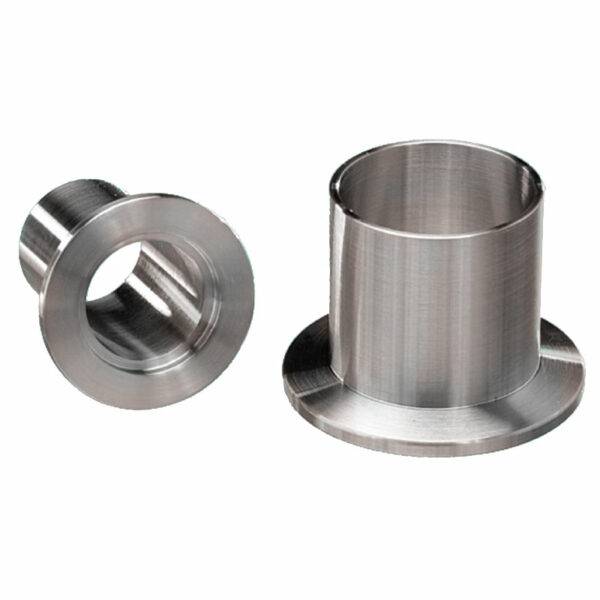

REPRESENTATIVE IMAGE

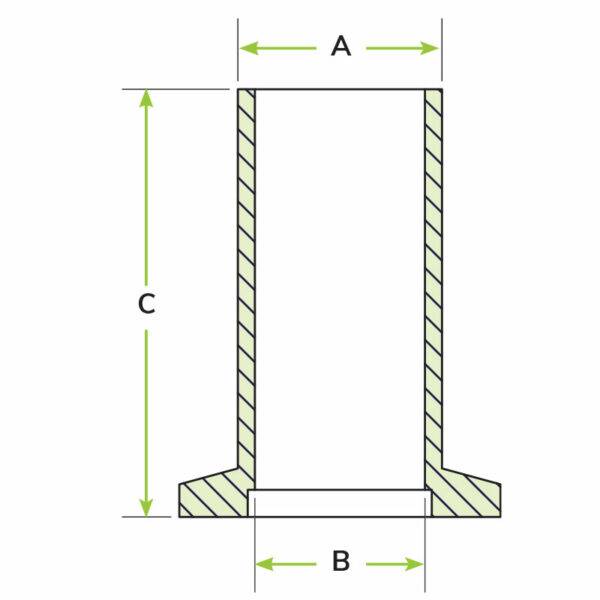

Attributes

A 2
B 2.06
C 1.58
Material 304L SS
Tube Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-200-HNM-1.58

ISO-QF50 Machined Half Nipple 2 in. OD, 304L SS

Part ID: 4000138


















$34.00

















































































60 in stock (can be backordered)

















































Half Nipples are manufactured with a flange on one end and raw tubing on the other. Half Nipples are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  • Retains o-ring if your system is exposed to a burst of pressure
    •

  • Butt weld
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Machined from solid bar – no welds
    •









Specifications






  •  Materials:
    •





  •  Standard:
    •



    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •



  •  Alternative:
    •



    •  316 Stainless Steel
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2



                    B 2.06



                    C 1.58



                    Material 304L SS



                    Tube Size 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
