REPRESENTATIVE IMAGE

Attributes

A 0.2

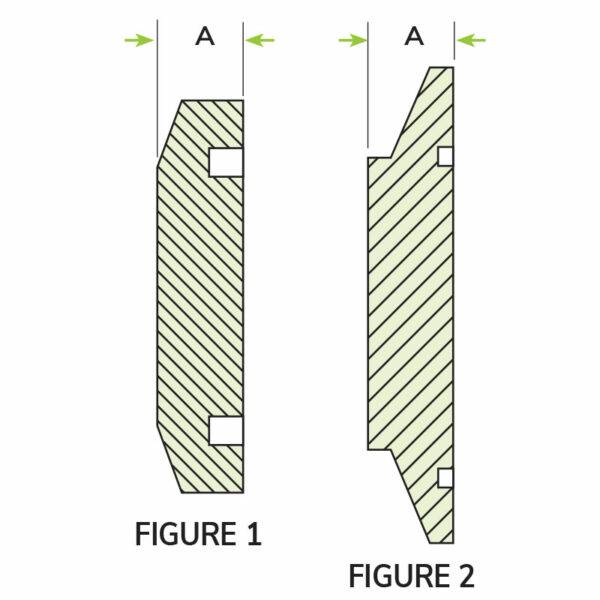

Figure 1
Material 6061-T6 Aluminum
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-000-AL

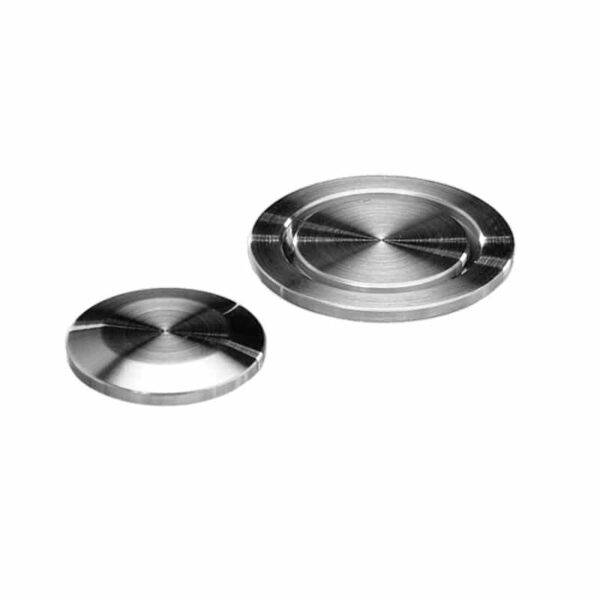

ISO-QF50 Blank Flange, Aluminum

Original price was: $12.20.Current price is: $9.76.

119 in stock (can be backordered)

Part ID: 4000168


Blank flanges are manufactured with no weld prep and no tubing bore. They are commonly used to close unused ports or they are altered by customers with their own custom machining capability for a special use.

Materials

  • Standard:
    • 304L Stainless Steel
    • 6061 Aluminum
  • Alternative: 316 Stainless Steel

Product Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly
  • Designed to fit standard inch tubing O.D.’s

Product Notes

  • Close off unused ports
  • Good choice for custom modification
