• 4000175
  • 4000175

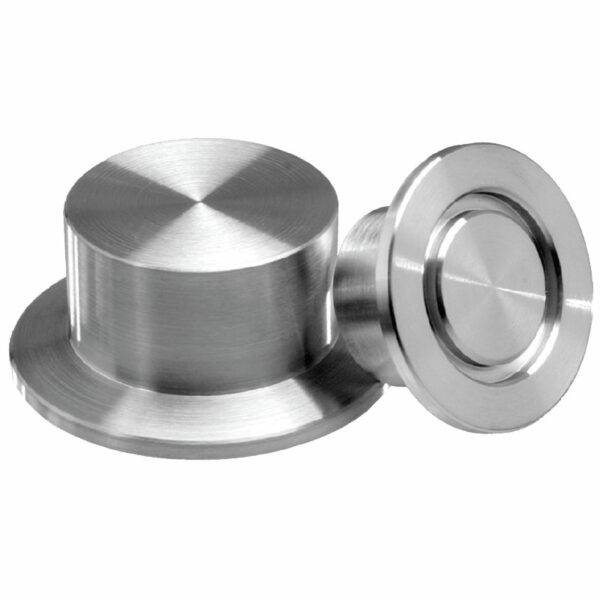

REPRESENTATIVE IMAGE

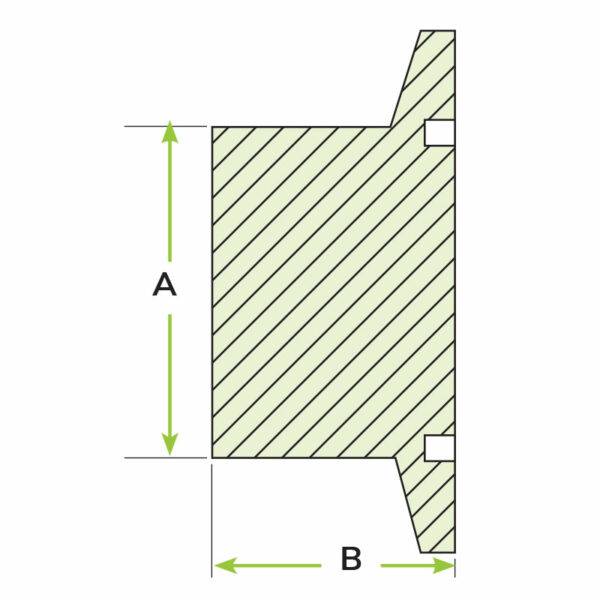

Attributes

A 2
B 1
Material 304L SS
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-000-US

ISO-QF50 Unbored Stub Flange

Part ID: 4000178


















$33.00



































































6 in stock (can be backordered)


















































Unbored Stub Flanges are manufactured with no weld prep and no tubing bore. They are commonly altered by customers with their own custom machining capability for a special use.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Butt Weld
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Good choice for custom modification
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 6061 Aluminum
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2



                    B 1



                    Material 304L SS



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
