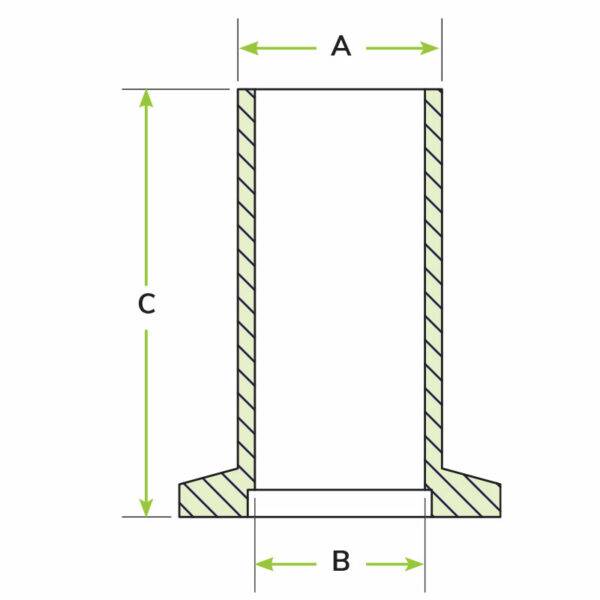

Attributes

A 2
B 2.06
C 1.58
Material 316 SST
Tube Size 2
3D CADLogin
DrawingLogin

QF50-200-HNM-1.58-316

ISO-QF50 Machined Half Nipple 2.0″, 316

$0.00

210 in stock (can be backordered)

Part ID: 4003138

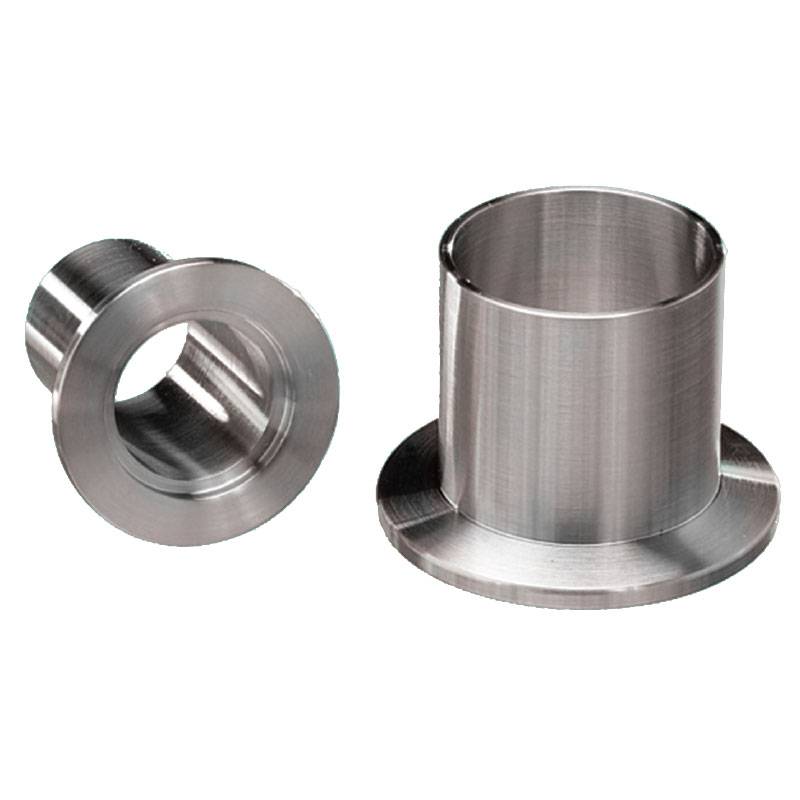

Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.



Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly



Materials

  • Standard: 304 Stainless Steel
  • Alternative:
    • 316 Stainless Steel
    • 6061 Aluminum



Product Notes

  • Butt weld
  • Designed to fit standard inch tubing O.D.’s
  • Machined from solid bar – no welds
