REPRESENTATIVE IMAGE

Attributes

A 4.08
B 2.87
C 1.37
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF80XQF40-300X150-CR-4.08

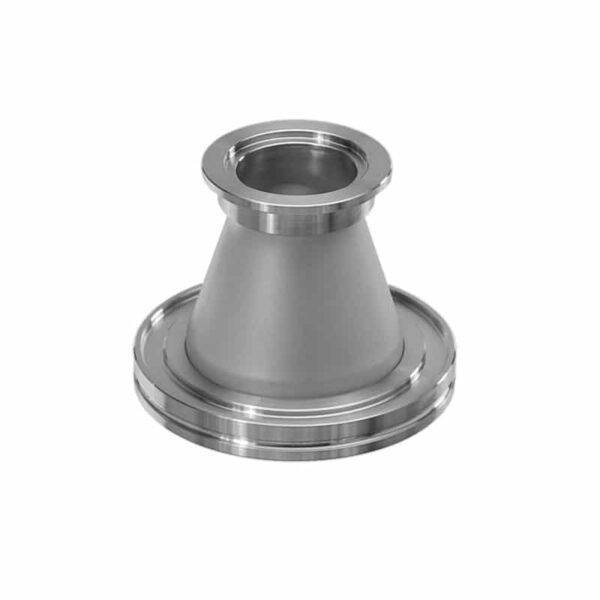

ISO-LF80/QF40 Conical Reducer Nipple

Part ID: 4500266


















$205.87





































			Standard Lead Time:

Contact
















































Available on backorder


















































Reducer nipples have different size flanges on each end and are available with conical tube sections. Conical tube sections provide higher conductance.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Quick sealing and disassembly
    •

  • Connects different ISO-LF sizes
    •

  • Increased conductance with a conical reducer nipple
    •









Specifications






  •  Materials:
    •





  •  Standard:
    •



    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •



  •  Alternative: 6061 Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.08



                    B 2.87



                    C 1.37



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
