• 4500450
  • 4500450

REPRESENTATIVE IMAGE

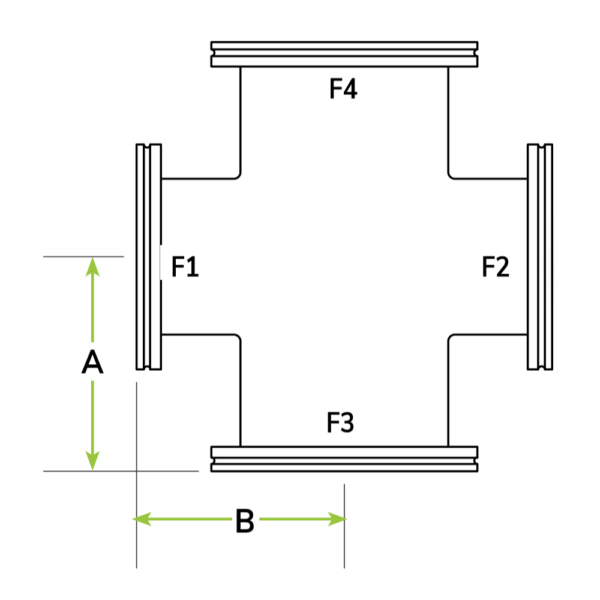

Attributes

A5.25
B5
Flange 3LF63
Tube O.D.2.5
Flange 1 & 2LF160
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF160XLF63-600X250-R4X-5.25X5.00

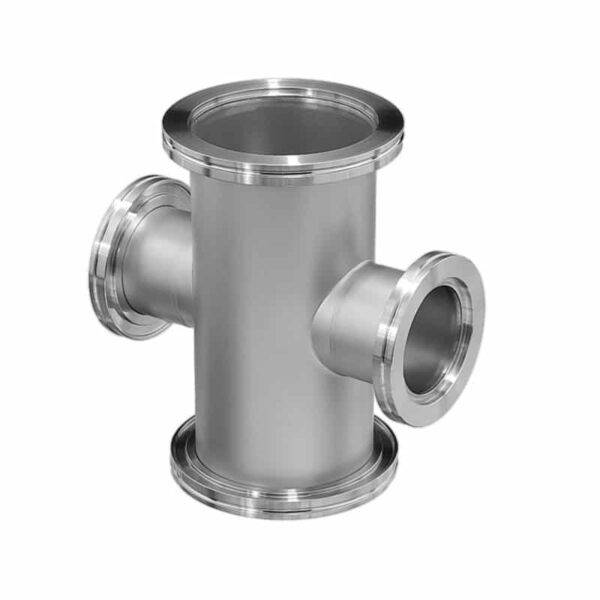

ISO-LF160/ISO-LF63 Reducer Cross

Part ID: 4500453
$892.50
Standard Lead Time:
Contact
Available on backorder


Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.
Features
  • High Vacuum Rated to 1×10-8 Torr
  •  Bakeable to 200°C
  • Quick sealing and disassembly
  • Pulled ports for optimal vacuum performance
  • Reducing intersection for different ISO-LF flange sizes
Specifications
  •  Materials:
  •  Flanges: 304L Stainless Steel
  •  Fitting: 304 Stainless Steel
  •  Alternative: 6061 Aluminum

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A5.25
B5
Flange 3LF63
Tube O.D.2.5
Flange 1 & 2LF160
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
