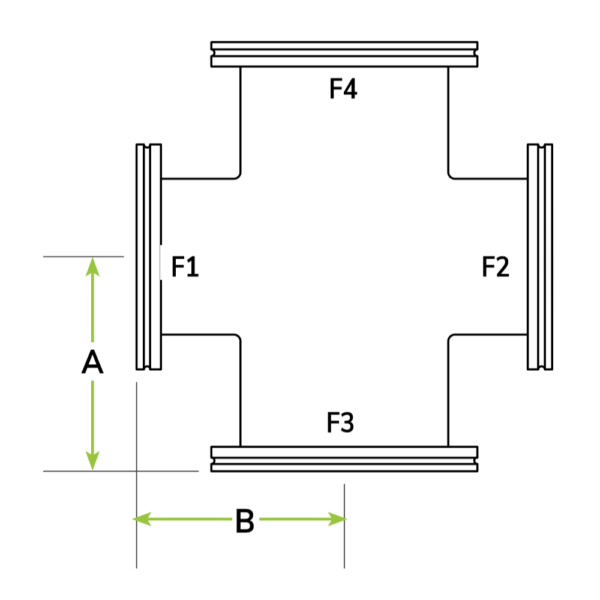

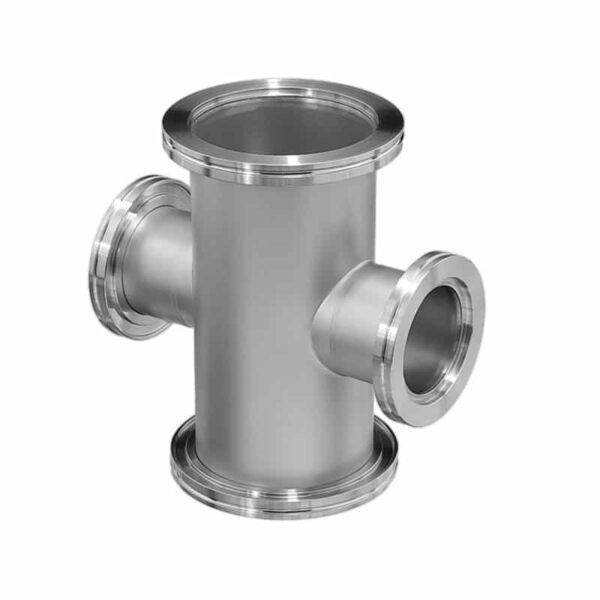

LF160XLF80-600X300-R4X-5.25X5.00

Crosses accomodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.

Features

• High Vacuum Rated to 1×10^-8 Torr
• Bakeable to 200°C
• Quick sealing and disassembly

Materials

• Standard: 304 Stainless Steel
• Alternative: 6061 Aluminum (Contact us for price and delivery)

Product Notes

• Pulled ports for optimal vacuum performance
• Reducing intersection for different ISO-LF flange sizes

Options (Contact us for price and delivery)

• Custom lengths
• Custom flange combinations
• ISO-QF large size flanges
• ISO-LFB flanges
  • Tapped bolt holes
