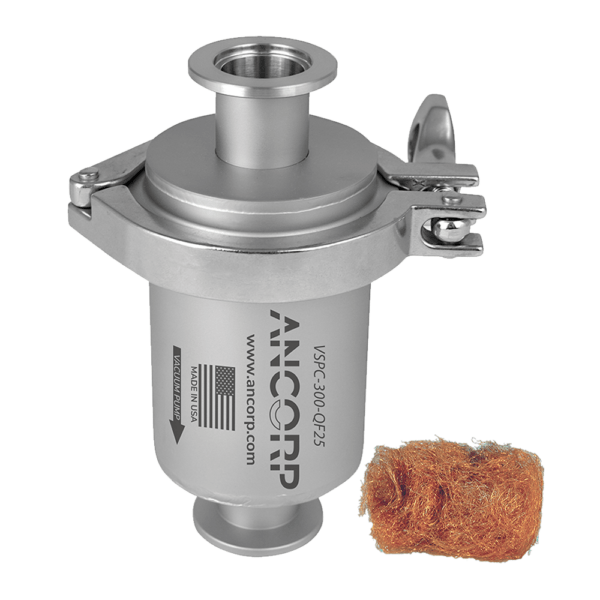

REPRESENTATIVE IMAGE

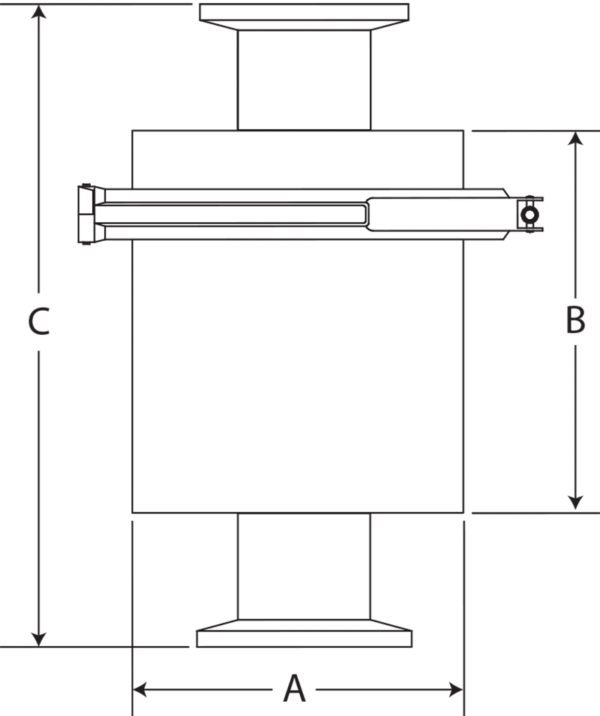

Attributes

A 2.5
B 3.8
C 5.9
Connection QF16 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-250-QF16-C

2.5″ diameter Rechargeable Trap with Copper Media and QF16 Flange Connection

$358.00

Available on backorder

Part ID: 7500111


Features

  • Fully charged
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
  • 2-stage trapping system
    • Stage 1: stainless steel baffle – extends the life of the media
    • Stage 2: coalescing media

Specifications

  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N
  • Trapping media: COPPER. Provides protection from pump fluid back streaming.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

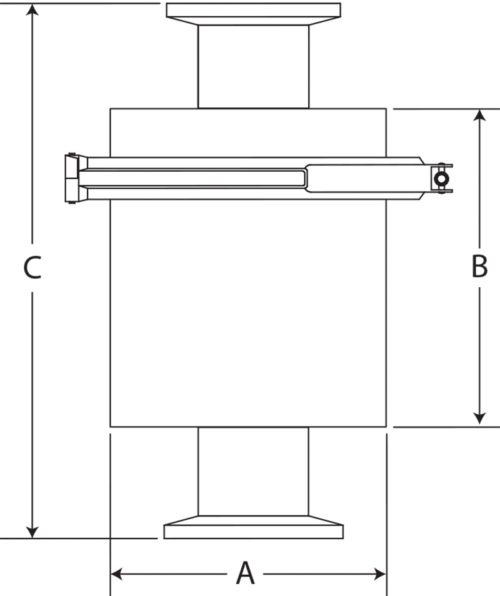

Attributes
