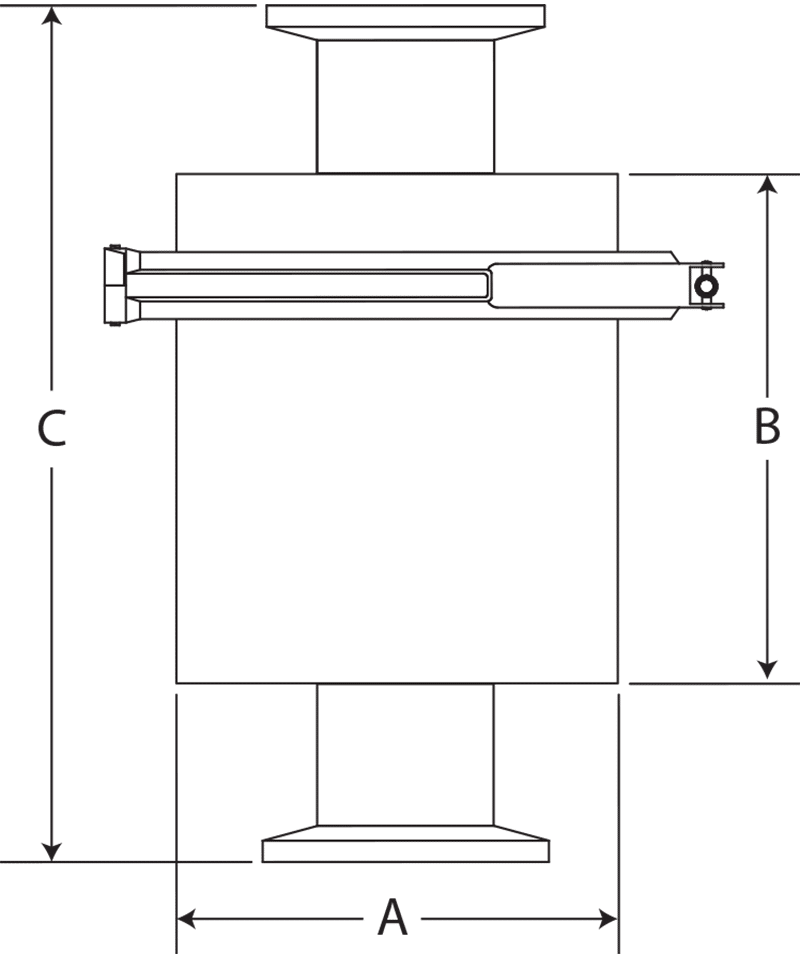

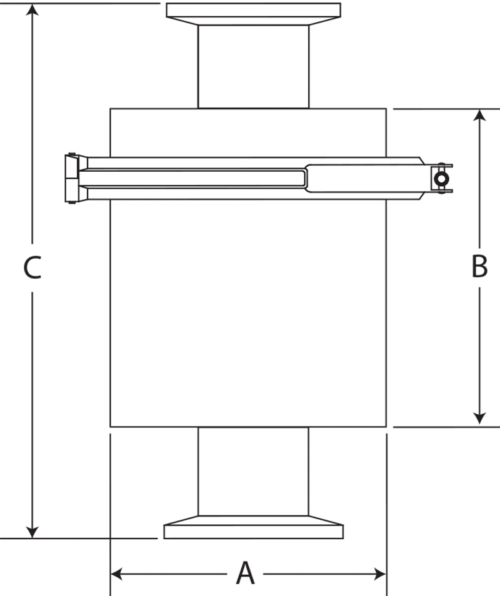

Attributes

A 2.5
B 3.8
C 5.9
Connection QF25 FLANGE
3D CADLogin
DrawingLogin

VSRC-250-QF25-C

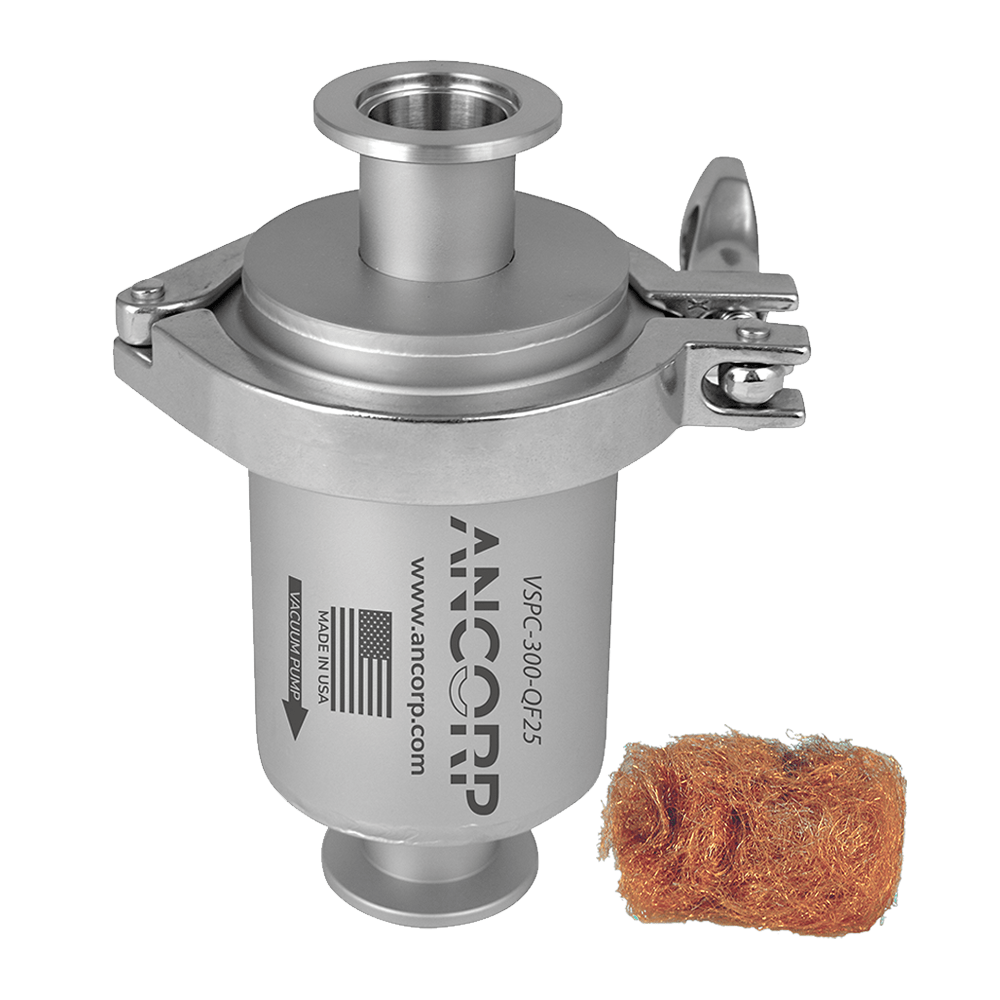

2.5″ diameter Rechargeable Trap with Copper Media and QF25 Flange Connection

$369.00

Available on backorder

Part ID: 7500115






Features


  • Trapping media: COPPER. Provides protection from pump fluid backstreaming.
    •
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •
  • 2-stage trapping system

    • Stage 1: stainless steel baffle – extends the life of the media
      •
    • Stage 2: coalescing media
      •

    •
  • Materials

    • Body, flanges and baffle: 304 stainless steel electropolished
      •
    • Seal: Buna-N
      •

    •
  • Fully charged
    •
