• 7500411
  • 7500411

REPRESENTATIVE IMAGE

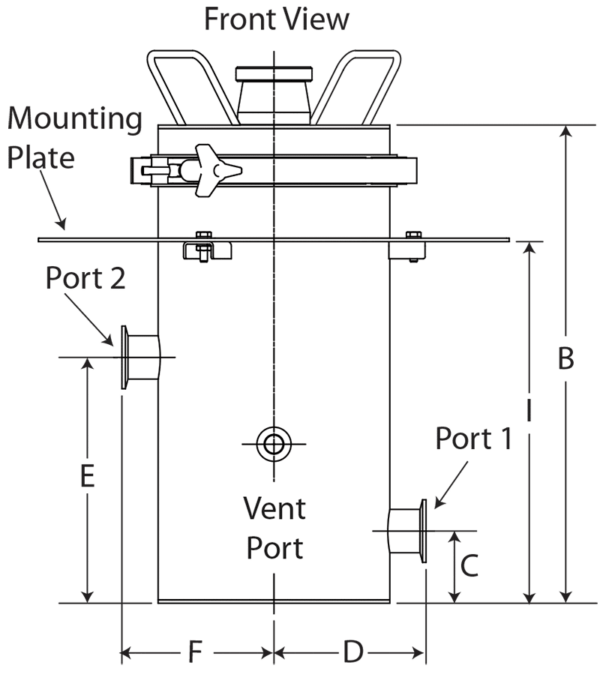

Attributes

A6
B15.5
C2.5
D4.25
E8.5
F4.25
G5.5
H3.98
Vol (L)2
I Height11.4
ConnectionQF25 FLANGE
J Diameter10
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSCI-2000-QF25

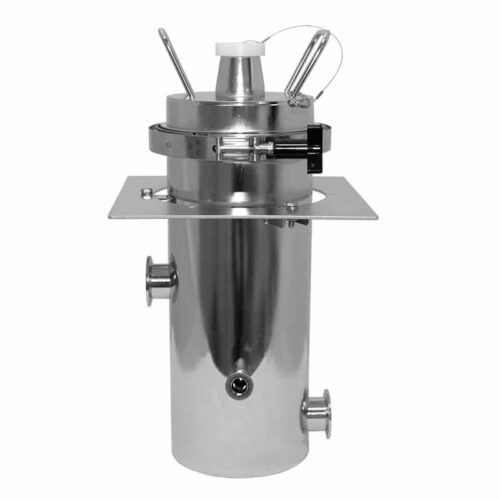

QF25 Large Body LN2 Trap, 2 L

Part ID: 7500425
Request a Quote for Price
Available on backorder
Standard Lead Time:
Contact
The VSCI traps have an in-line port design for installation and a simple 2-piece clamped body design to ease trap cleaning.
Features
  • Port terminations: ISO-QF(KF)
  • Trapping mechanics: condensation
  • Mounting plate and exhaust vent included
Specifications
  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

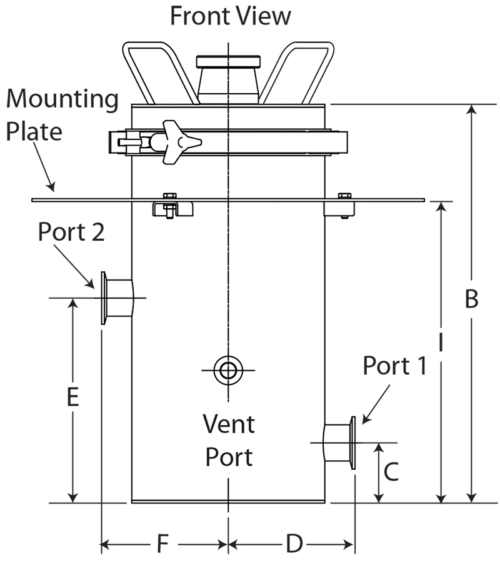

Attributes
A6
B15.5
C2.5
D4.25
E8.5
F4.25
G5.5
H3.98
Vol (L)2
I Height11.4
ConnectionQF25 FLANGE
J Diameter10
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
