REPRESENTATIVE IMAGE

Attributes

DescriptionASME Burst Disk CF275 Flange
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

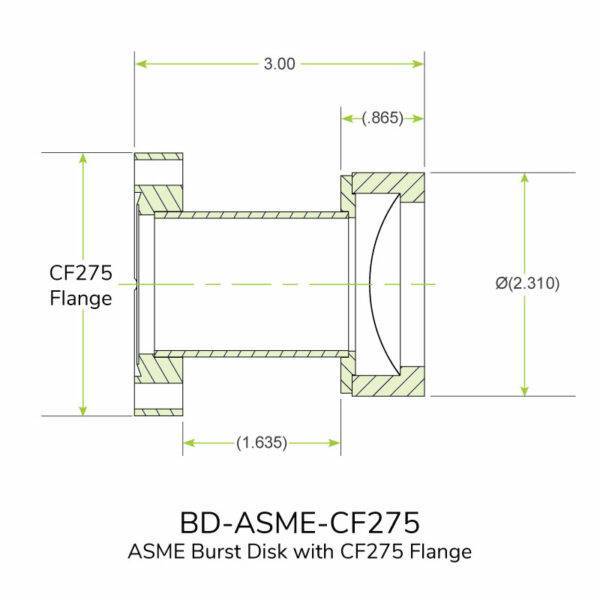

BD-ASME-CF275

ASME Burst Disk CF275 (DN 40)Flange

Part ID: 9100031
$625.00
Standard Lead Time:
Contact
Available on backorder

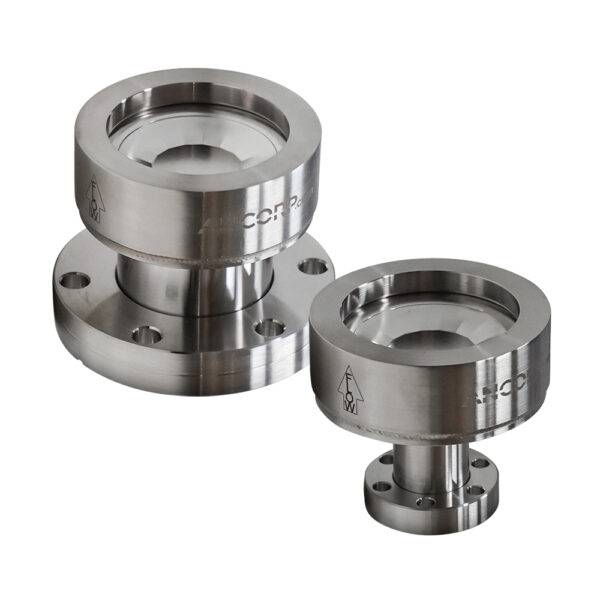

ANCORP’s ASME Overpressure burst disk protects against over pressurization of high and ultra-high vacuum (UHV) systems.
Features
  • Pressure relief range 9 to 11.5 PSIG
  • UHV Compatible all-metal construction
Specifications
  • Bakeable to 450°C
  • ASME UD certified
  • 10CFR851 compliant
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
  • Calculated Flow rates
    • 435 SCFM on 2.75″ flange assembly
