CF600-ZLVP-Q-UV-3.88

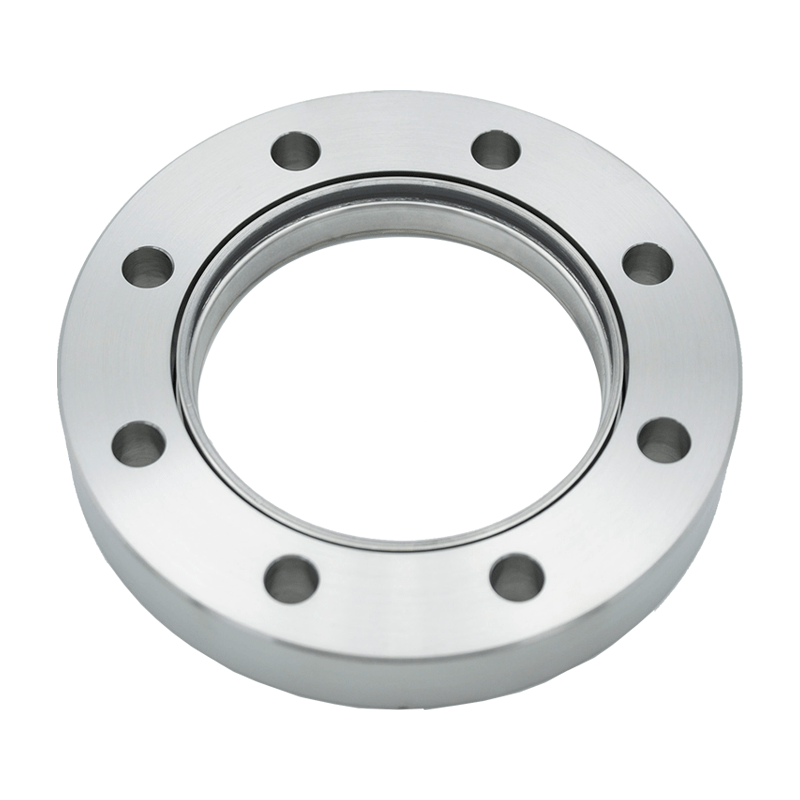

UV Fused Silica Viewport with 6.00 in. (DN 100) ConFlat Flange
Part ID: 9118031
$945.00
Standard Lead Time: | Contact |
---|
Available on backorder

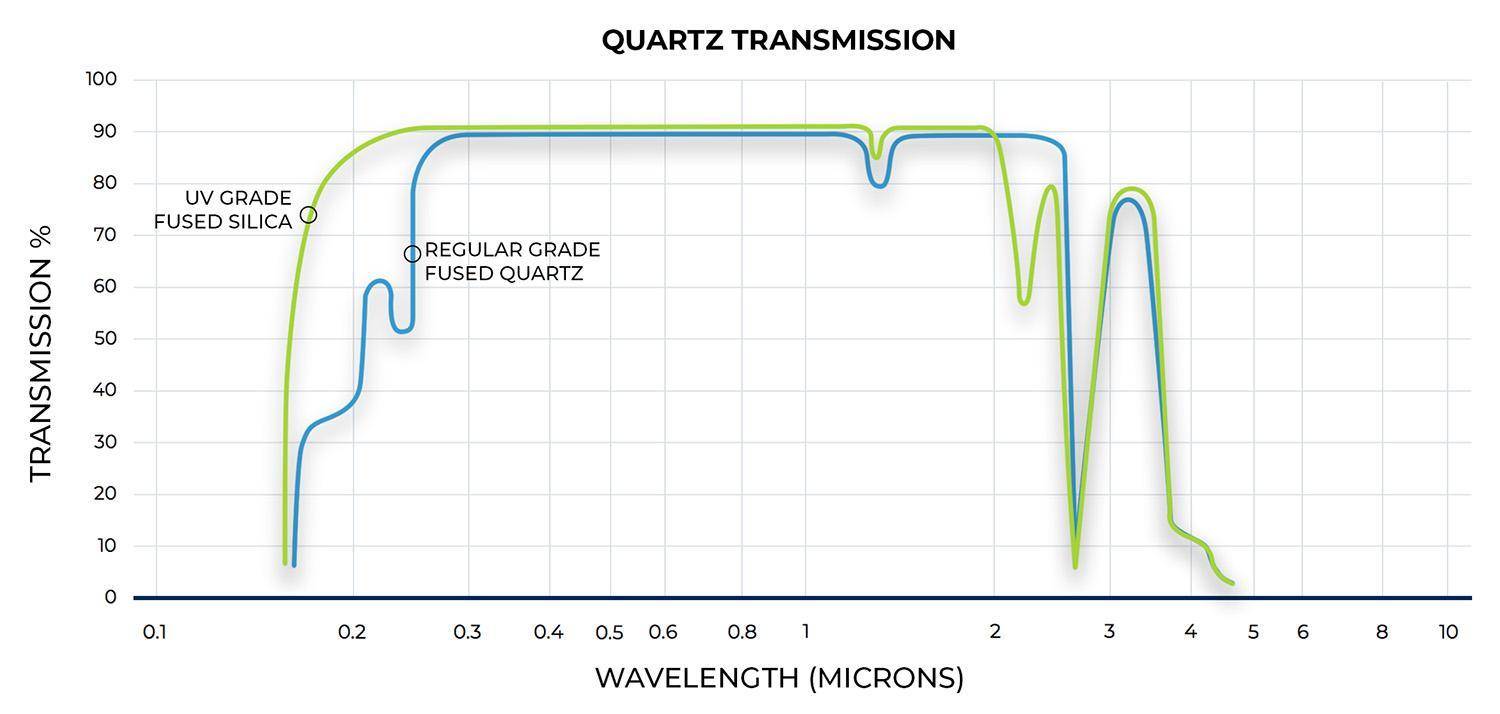

Fused silica provides better transmission in the UV range compared to standard borosilicate glass. Fused silica is a type of ultra-pure non-crystalline synthetic quartz with great optical and thermal properties.
Features
- UV grade fused silica viewport

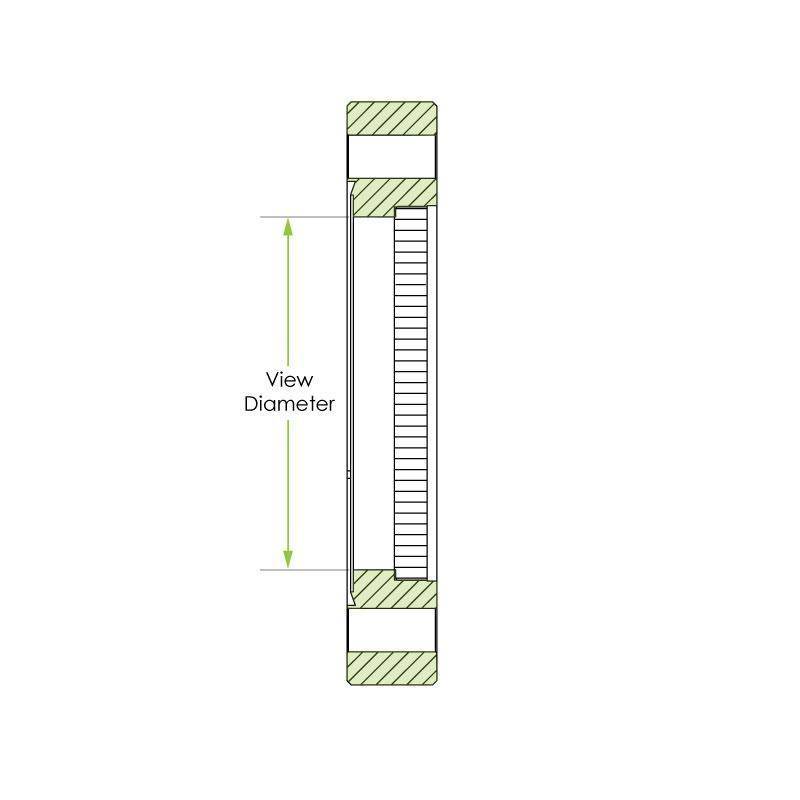

- Zero-length profile
- ConFlat flange
- UV grade fused silica windows
- Bakeable to 200°C
- Non-magnetic materials
- Excellent transmission for UV to 250nm
- UHV compatible
Specifications
- Flange material
- 316L stainless steel (1.33”)
- 304L stainless steel (2.75” to 8.00”)
- Window material: Corning HPFS 7980 Fused Silica or equivalent
- TWD < 10λ @ 632nm (peak to valley)
- Parallelism < 30 arc minutes
- Surface finish: 40/20 scratch-dig
- Thermal range: -100°C to 200°C
- Bake-out ramp rate: 20°C per minute
- Homogeneity grade: F
- Inclusion class: 2
- Leak rate < 1 X 10-9 atm-cc/sec He
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
