Attributes

A 9.84
B 6.57
C 8
Angle 13°

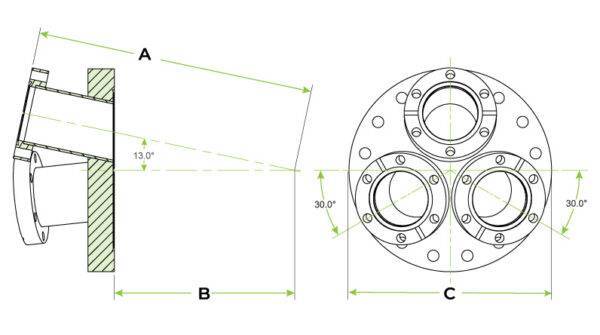

Drawing 1
3D CADLogin
DrawingLogin

CF800X3CF275-AMCF

Part ID: 5005005

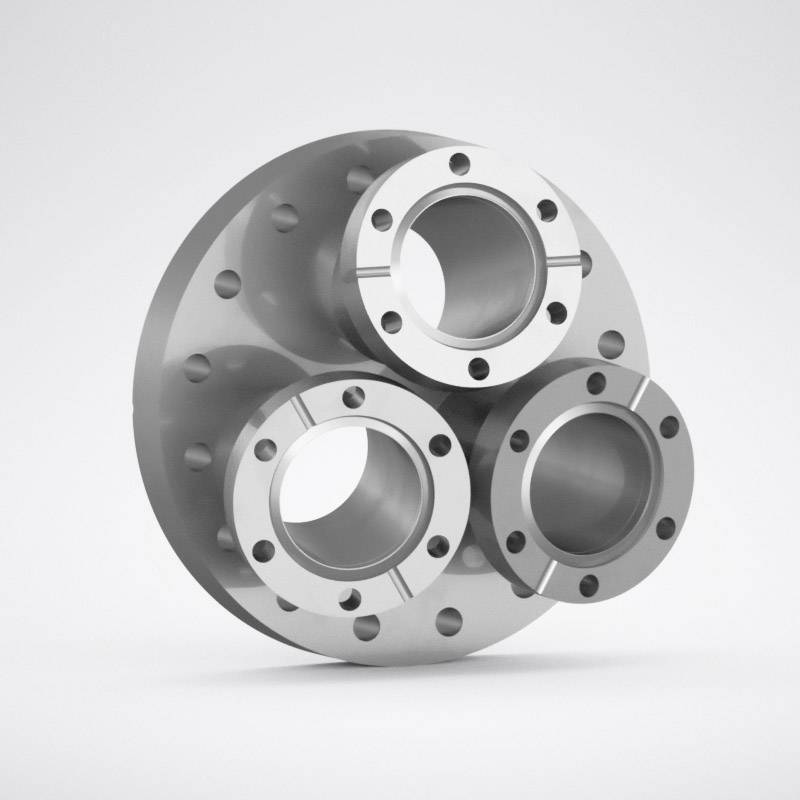

CF600 (6”) or CF800 (8”) O.D. multiport flange with (3) or (4) CF275 (2.75”) fixed flanges angled in on tube extensions, focused on target point.



Product Features:

  • Standard Material: 304L SS
  • Temperature Range: -200°C to 450°C
  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
  • Typically made-to-order



Options: Contact us for price and delivery

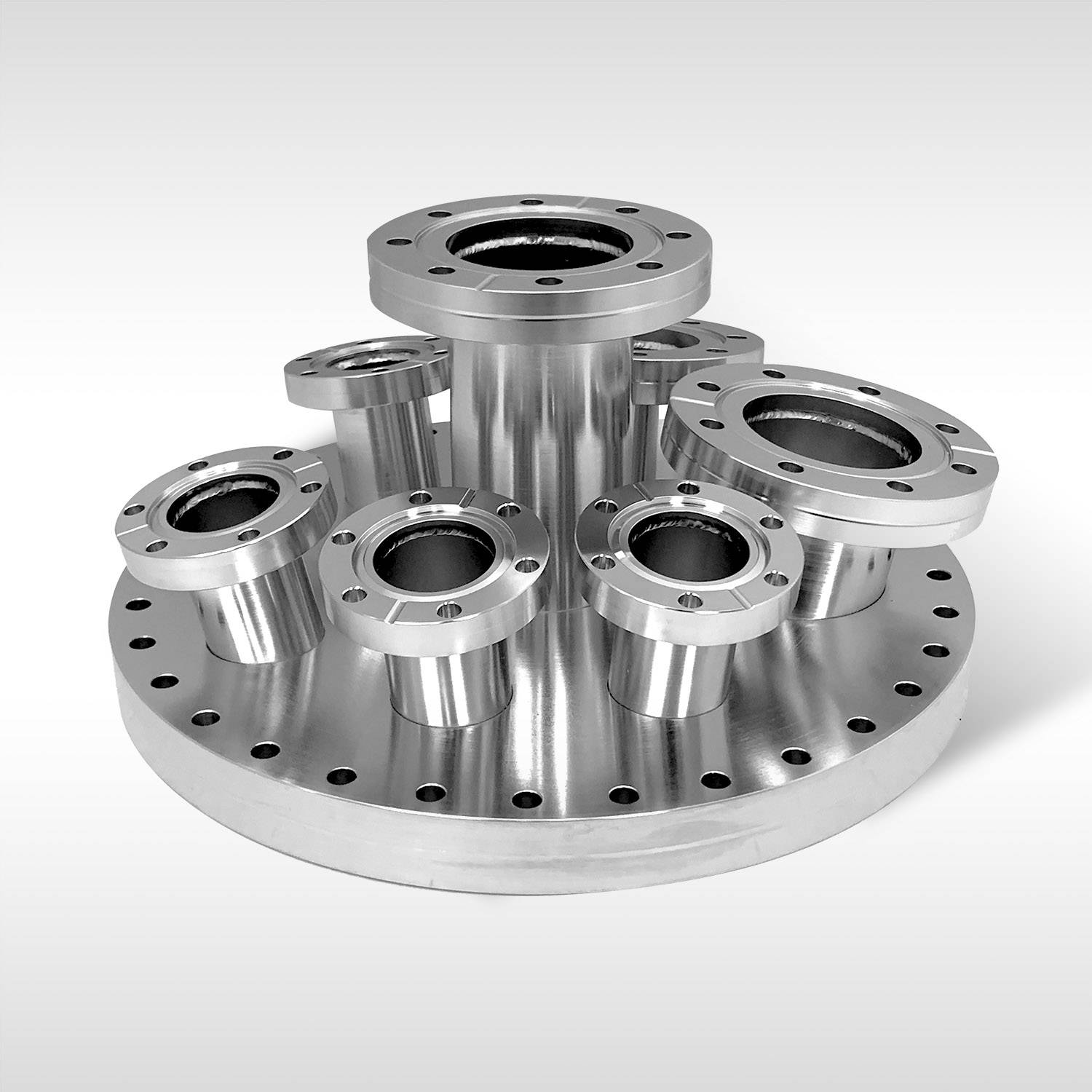

  • Number of ports, angles of ports, flange sizes, flange types, tube lengths, materials, and more.



If you are interested in purchasing a customized multiport flange, please visit our Request a Custom Product page to submit your specifications.
