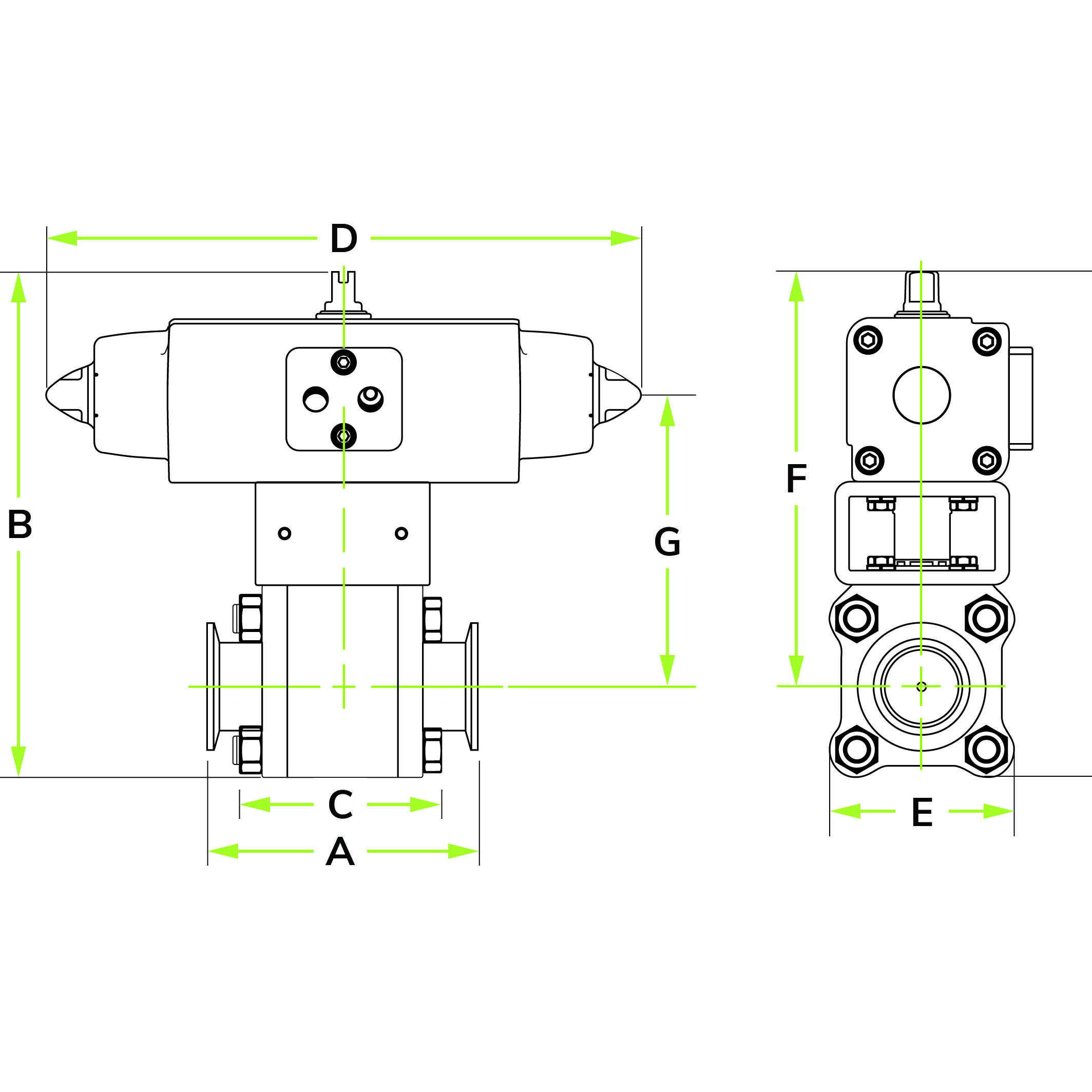

Attributes

A 4.97
B 9
C 3.90
D 7.80
E 3.50
F 7.20
G 5.1
End Cap QF50
Ball Size 1.50
End Cap Tube Size 2 in.O.D.
Conductance (L/Sec) 57
3D CADLogin
DrawingLogin

E4200-QF50-AA

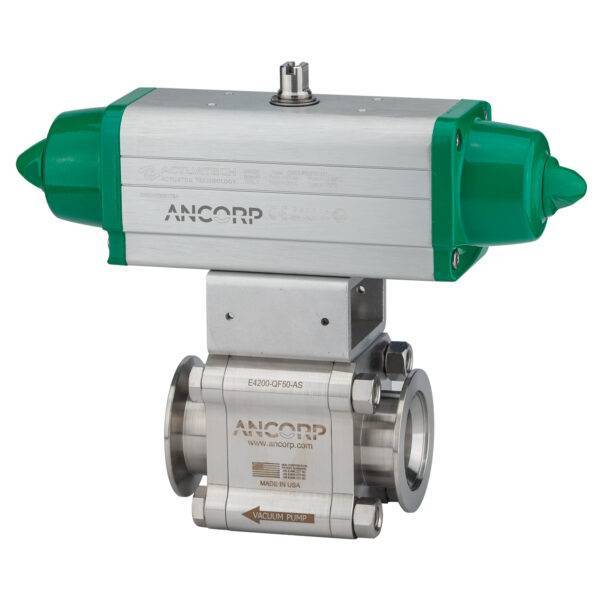

2″ Pneumatic Ball Valve QF50

$1,435.00

Available on backorder

Part ID: 3008150






ANCORP’s ball valves consist of a body, stem, ball, and two end caps machined from corrosive resistant 316L stainless steel. Fluoroelastomers are used to seal the stem and end caps from atmosphere while the Teflon® seats cold flow around the ball to isolate the process when closed. The valve is opened and closed manually or pneumatically by ¼ turn, quick actuation. The Teflon® sealing surface helps to protect it from deposition, maintaining a clean dynamic seal to prevent failure due to contamination.


Applications


The corrosive resistant, fast actuating design of ANCORP’s vacuum ball valves makes them ideal for isolating reactors, traps, and scrubbers on vacuum process tools.




Features



  • Vacuum rating of 1×10-8 torr
    •
  • Max Temp w/Standard FKM -26°C to 150°C (-15°F to 302°F)
     Higher operating temperatures are possible with alternate o-ring and grease options. Contact our sales department for more information.
    •
  • Manufactured from 316L stainless steel
    •
  • High conductance; straight through flow
    •
  • Particulate resistant ball/seat design lengthens time between maintenance cycles
    •
  • “-AA” for air-to-open, air-to-close; “-AS” for air-to-open, spring-to close
    •
  • 80-120 psig operating air pressure
    •
