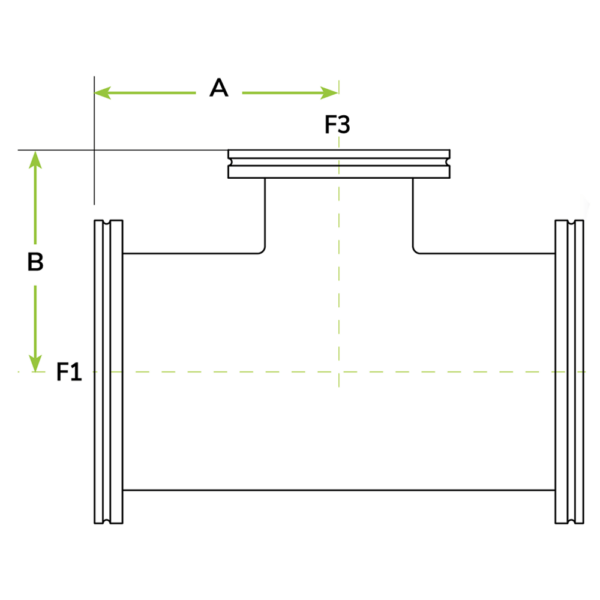

REPRESENTATIVE IMAGE

Attributes

A 5
B 5.25
Flange 3 LF80
Keywords LF160XLF80-T
Tube O.D. 3
Flange 1 & 2 LF160
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF160XLF80-600X300-RDT-5.25X5.00

ISO-LF160 to LF80 Reducer Tee

$545.00

Available on backorder

Part ID: 4500445


Tees accommodate junctions or alignment considerations for vacuum system design. They are also used as junction adapters between different tubing sizes or flange types.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Quick sealing and disassembly
  • Pulled ports for optimal vacuum performance
  • Reducing intersection for different ISO-QF flange sizes

Specifications

  • Materials:
  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel
  • Alternative: 6061 Aluminum
