• 7500411
  • 7500411

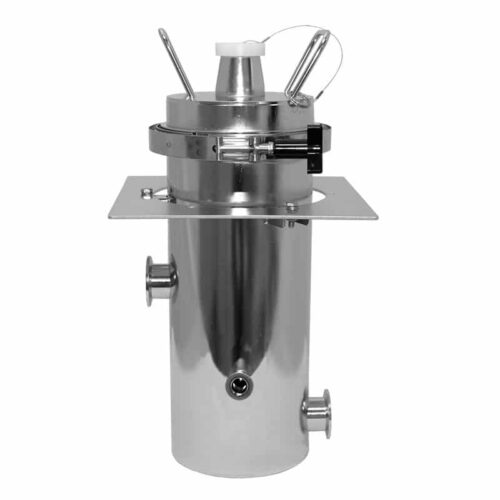

REPRESENTATIVE IMAGE

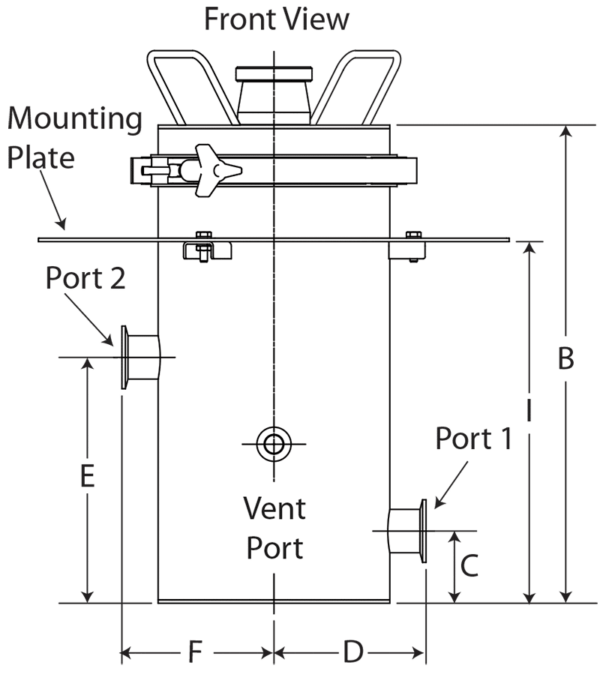

Attributes

A 6
B 15.5
C 2.5
D 4.25
E 8.5
F 4.25
G 5.5
H 3.98
Vol (L) 2
I Height 11.4
Connection QF50 FLANGE
J Diameter 10
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSCI-2000-QF50

QF50 Large Body LN2 Trap, 2 L

Part ID: 7500427

































Request a Quote for Price









Available on backorder





















			Standard Lead Time:

Contact









































































The VSCI traps have an in-line port design for installation and a simple 2-piece clamped body design to ease trap cleaning.




Features






  • Port terminations: ISO-QF(KF)
    •

  • Trapping mechanics: condensation
    •

  • Mounting plate and exhaust vent included
    •









Specifications






  • Materials:
    •





  • Body, flanges and baffle: 304L stainless steel electropolished
    •

  • Seal: Buna-N
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 6



                    B 15.5



                    C 2.5



                    D 4.25



                    E 8.5



                    F 4.25



                    G 5.5



                    H 3.98



                    Vol (L) 2



                    I Height 11.4



                    Connection QF50 FLANGE



                    J Diameter 10



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
