REPRESENTATIVE IMAGE

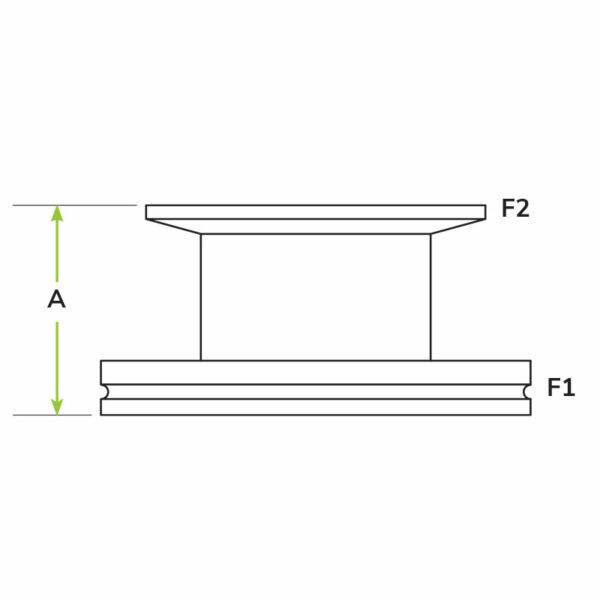

Attributes

A 1.83
Flange 1 LF160
Flange 2 QF50
Tube O.D. 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF160XQF50-200-N-1.83

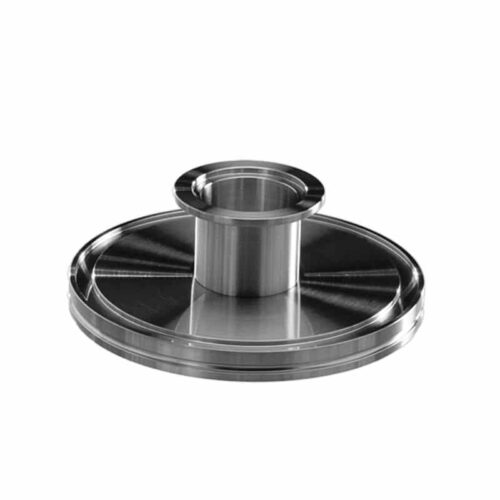

ISO-LF160/QF50 Straight Reducer Nipple

Part ID: 4500379


















$250.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Reducer nipples have different size flanges on each end and are available with straight tube sections.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Quick sealing and disassembly
    •

  • Connects different ISO-LF sizes
    •









Specifications






  •  Materials:
    •





  •  Standard:
    •



    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •



  •  Alternative: 6061 Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 1.83



                    Flange 1 LF160



                    Flange 2 QF50



                    Tube O.D. 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
