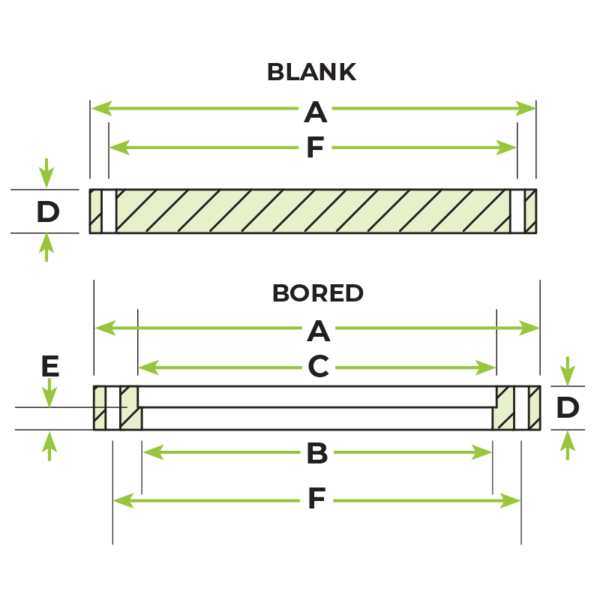

A 16.50
B -
C -
D 1.12
E -
F 15.31
Thrd 0.39
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 36
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1650-000

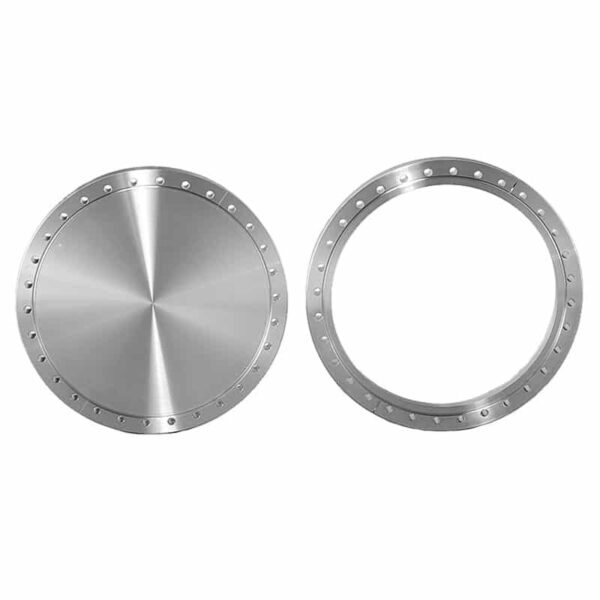

304L SS 16.50 in. (DN 350) Blank Fixed ConFlat Flange with Clearance Bolt Holes

$1,500.00

1 in stock (can be backordered)

Part ID: 5000200


16.50 inch outer diameter ConFlat (DN295 CF) non-rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
