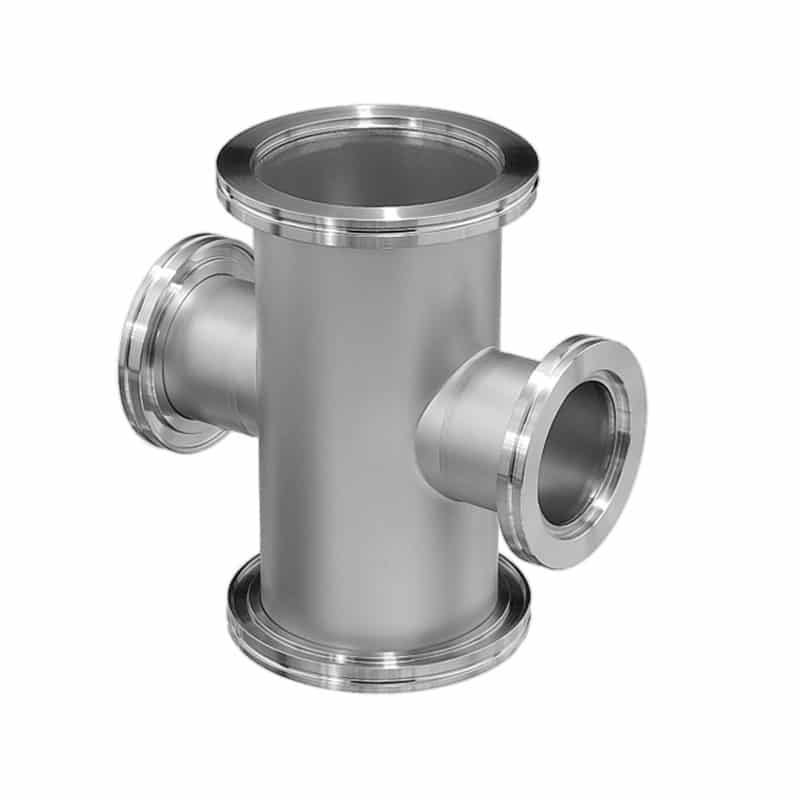

ISO-LF Reducer Cross
Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.
Features
- High Vacuum Rated to 1×10-8 Torr
- Bakeable to 200°C
- Quick sealing and disassembly
- Pulled ports for optimal vacuum performance
- Reducing intersection for different ISO-LF flange sizes
Specifications
- Materials:
- Flanges: 304L Stainless Steel
- Fitting: 304 Stainless Steel
- Alternative: 6061 Aluminum
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | Flange 3 | Tube O.D. | Flange 1 & 2 | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 4500450 | Reference Number | LF80XLF63-300X250-R4X-3.50X3.50 | A | 3.5 | B | 3.5 | Flange 3 | LF63 | Tube O.D. | 2.5 | Flange 1 & 2 | LF80 | 3D CAD | Login | Drawing | Login | Unit Price | $540.60 | Contact | |
| Part ID | 4500451 | Reference Number | LF100XLF63-400X250-R4X-4.13X4.00 | A | 4.13 | B | 4 | Flange 3 | LF63 | Tube O.D. | 2.5 | Flange 1 & 2 | LF100 | 3D CAD | Login | Drawing | Login | Unit Price | $637.50 | Contact | |
| Part ID | 4500452 | Reference Number | LF100XLF80-400X300-R4X-4.13X4.00 | A | 4.13 | B | 4 | Flange 3 | LF80 | Tube O.D. | 3 | Flange 1 & 2 | LF100 | 3D CAD | Login | Drawing | Login | Unit Price | $749.70 | Contact | |
| Part ID | 4500455 | Reference Number | LF160XLF100-600X400-R4X-5.25X5.13 | A | 5.25 | B | 5.13 | Flange 3 | LF100 | Tube O.D. | 4 | Flange 1 & 2 | LF160 | 3D CAD | Login | Drawing | Login | Unit Price | $1,173.00 | Contact | |
| Part ID | 4500453 | Reference Number | LF160XLF63-600X250-R4X-5.25X5.00 | A | 5.25 | B | 5 | Flange 3 | LF63 | Tube O.D. | 2.5 | Flange 1 & 2 | LF160 | 3D CAD | Login | Drawing | Login | Unit Price | $892.50 | Contact | |
| Part ID | 4500454 | Reference Number | LF160XLF80-600X300-R4X-5.25X5.00 | A | 5.25 | B | 5 | Flange 3 | LF80 | Tube O.D. | 3 | Flange 1 & 2 | LF160 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
| Part ID | 4500456 | Reference Number | LF200XLF160-800X600-R4X-7.25X6.25 | A | 7.25 | B | 6.25 | Flange 3 | LF160 | Tube O.D. | 6 | Flange 1 & 2 | LF200 | 3D CAD | Login | Drawing | Login | Unit Price | $1,734.00 | Contact |
