REPRESENTATIVE IMAGE

Attributes

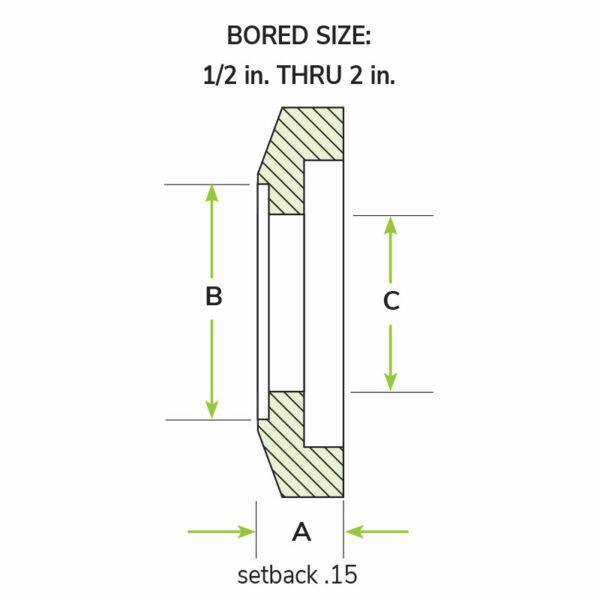

A 0.2
B 2.01
C 1.94
Material 316 SS
Bore Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-200-BW-316

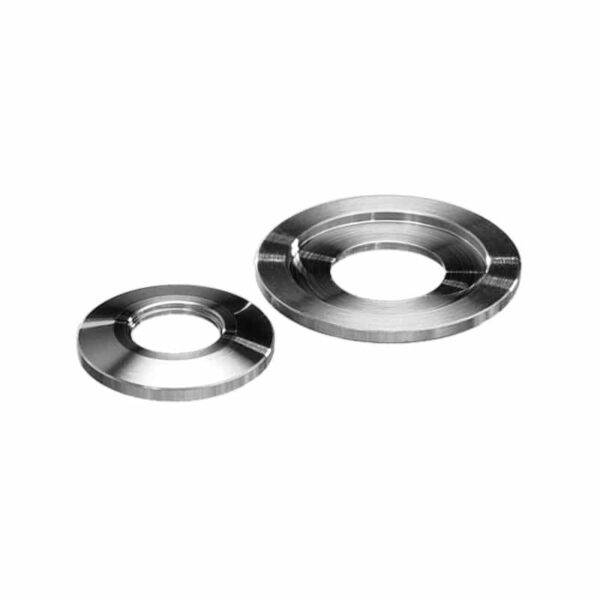

QF50 Bored Weld Flange 2 in. Bore, 316SS

Request a Quote for Price

Part ID: 4003120











Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Designed to fit standard inch tubing O.D.’s
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.2



                    B 2.01



                    C 1.94



                    Material 316 SS



                    Bore Size 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
