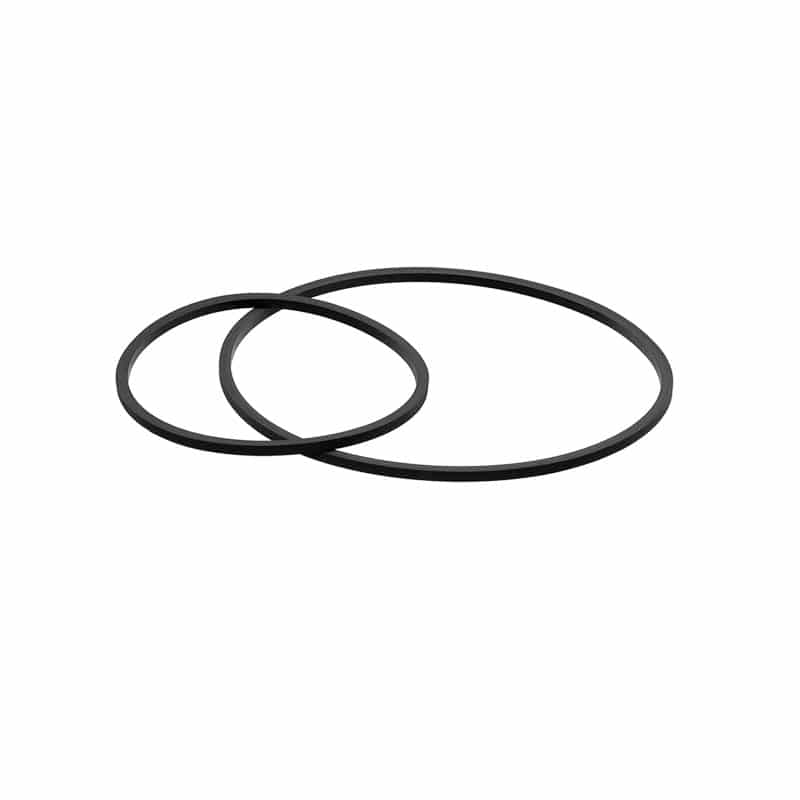

REPRESENTATIVE IMAGE

Attributes

Description Fluorocarbon (FKM) Gasket (1)
Use with Flange WF1200
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

WF1200-GA-VT

Wire Seal Fluorocarbon (FKM) Gasket for WF1200-HBK

Part ID: 0606521


















$45.00



















































			Standard Lead Time:

Contact
















































Available on backorder

















































This alternative seal for the Wire Seal flange system is a vacuum grade fluorocarbon elastomer gasket that is compressed between a Male and Female Wire Seal flange to create a seal capable of achieving high vacuum pressure. This seal is suitable for chemical applications.




Features






  • Single-use seal
    •









Specifications






  • Materials: Fluorocarbon elastomer
    •

  •  Pressure range: HV (approx. 1×10-8 Torr)
    •

  •  Temperature range: -20°C up to 150°C (intermittent use to 200°C)
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description Fluorocarbon (FKM) Gasket (1)



                    Use with Flange WF1200



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
