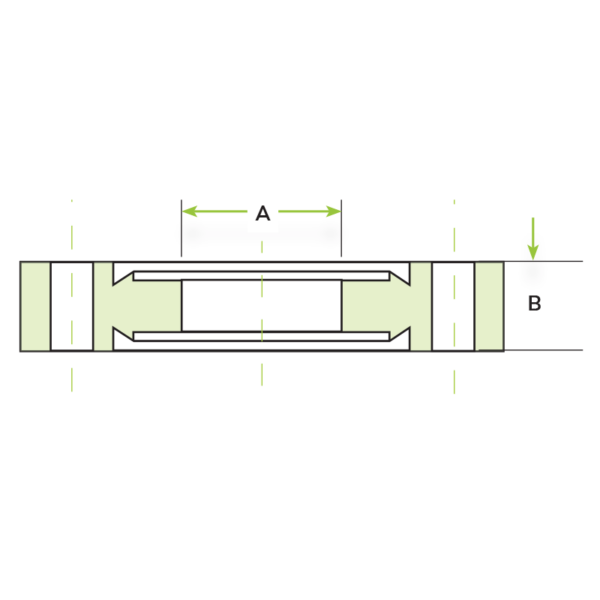

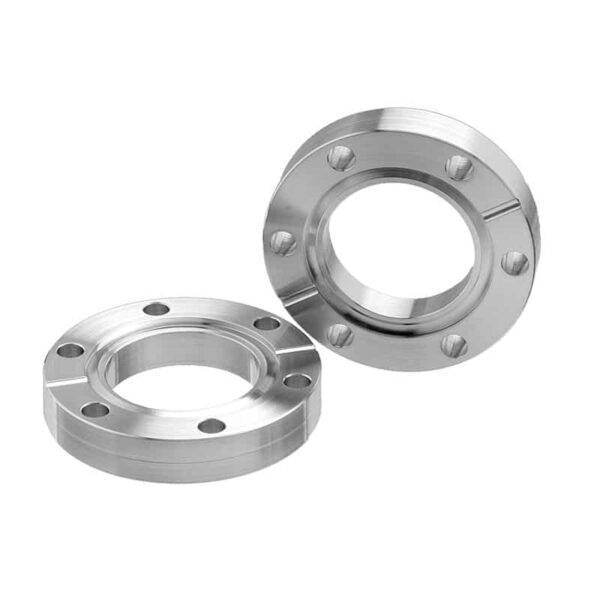

Double Sided CF275 1.26″I.D.
Part ID: 5000259
- Same size CF flange on both sides
- Ideal to add a spacer to your system or customize with a radial port
- Requires special CF double-sided flange bolt kit for fastening
- Use standard CF gaskets to seal
- Sexless flanges
- Interchangeable with other ConFlat style flanges
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200oC up to 450oC
- Standard materials: 304L stainless steel
Options: Contact us for price and availability
- Tapped bolt holes
- Alternative materials: 316L stainless steel, aluminum, etc.
