• 5000245
  • 5000245

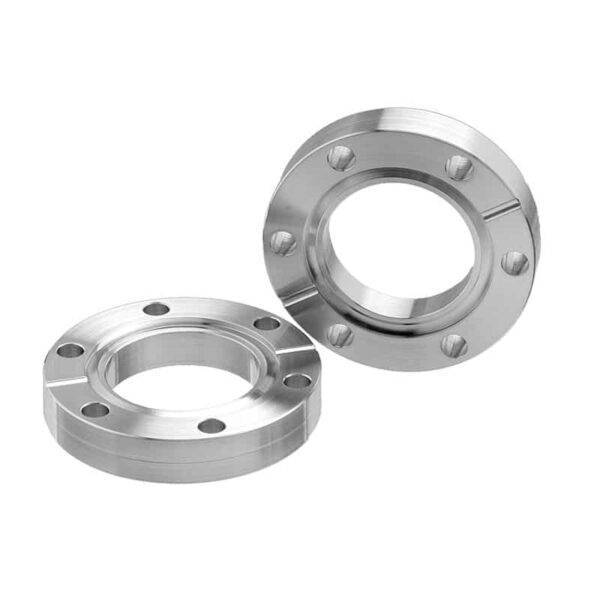

REPRESENTATIVE IMAGE

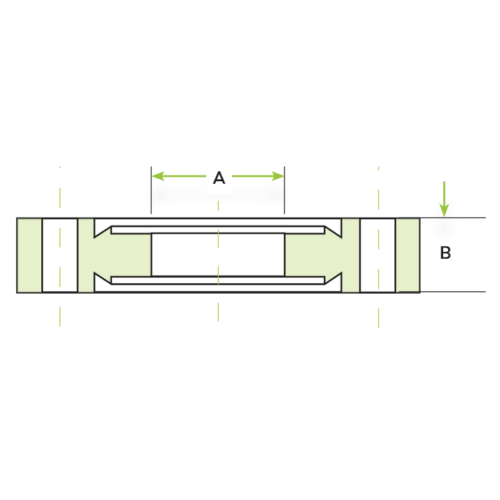

Attributes

A 10.03
B 1.12
Thrd 0.39
Bolt Holes 30
Flange O.D. 13.25
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325-1000-DS-1.120

Double Sided 13.25 in. (DN 275) ConFlat Flange with 10 in. Inner Diameter

$730.00

Available on backorder

Part ID: 5000281











Features






  • Same size CF flange on both sides
    •

  • Ideal to add a spacer to your system or customize with a radial port
    •

  • Requires special CF double-sided flange bolt kit for fastening
    •

  • Use standard CF gaskets to seal
    •

  • Use standard CF gaskets to seal
    •

  • Self-aligning
    •

  • Sexless flanges
    •

  • Interchangeable with other ConFlat style flanges
    •









Specifications






  • Temperature Range: -200°C to 450°C
    •

  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 10.03



                    B 1.12



                    Thrd 0.39



                    Bolt Holes 30



                    Flange O.D. 13.25



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
